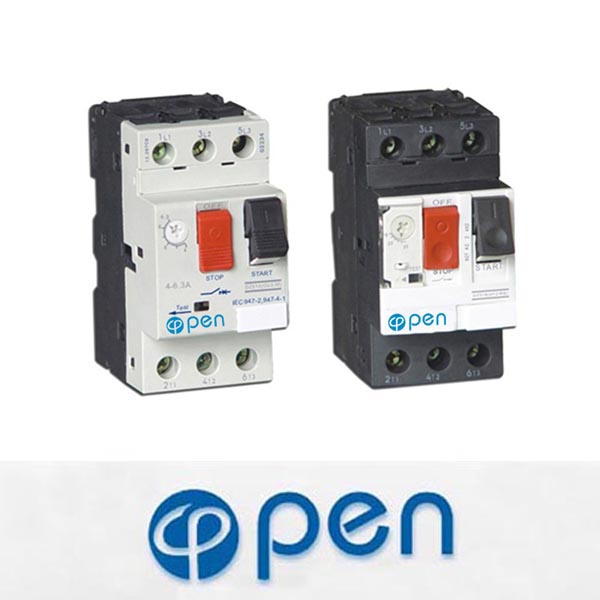

XHV2(GV2),series motor protecting breaker adopts the design of module,It has beautifulshape,small ＆#118alue,complete range of function and reliable performance.DZ518 series is conformity with IEC60947.2, IEC60947-4.1, andEN60947-1 standards,Switch an contactor can make up the starting of the motor The prection grade of the case of XHV2(GV2) series can reach IP55. XHV2(GV2) series has three types of products. XHV2-M(GV2-M)series is button-controlling motor with hot magnetic protecting breaker.

Specification

XHV2-M(GV2-M),XHV2-ME(GV2-ME)
M01C	0.1-0.16
M02C	0.16-0.25
M03C	0.25-0.40
M04C	0.40-0.63
MO5C	0.63-1
MO6C	1-1.6
MO7C	1.6-2.5
MO8C	2.5-4
M10C	4-6.3
M14C	6-10
M16C	9-14
M18C	10-16
M20C	13-18
M21C	17-23
M22C	20-25
M32C	24-32

The rated power of three-phase electromtor controlled by breaker(XHV2 motor circuit breaker)

Adjusting range of rated current (A)	Standard power of three-phase electromotor( KW) AC-3 50/60Hz
Adjusting range of rated current (A)	230/240V	400V	415V	440V	500V	690V
0.1-0.16	-	-	-	-	-	-
0.16-0.25	-	-	-	-	-	-
0.25-0.4	-	-	-	-	-	-
0.4-0.63	-	-	-	-	-	0.37
0.63-1	-	-	-	0.37	0.37	0.55
1-1.6	-	0.37	-	0.55	0.75	1.1
1.6-2.5	-	0.75	0.75	1.1	1.1	1.5
2.5-4	0.37	1.5	1.5	1.5	2.2	3
4-6.3	0.75	2.2	2.2	3	3.7	4
6-10	1.1	4	4	4	5.5	7.5
9-14	2.2	5.5	5.5	7.5	7.8	9
13-18	3	7.5	9	9	9	11
17-23	4	11	11	11	11	15
20-25	5.5	11	11	11	11	18.5
24-32	5.5	15	15	15	18.5	23
