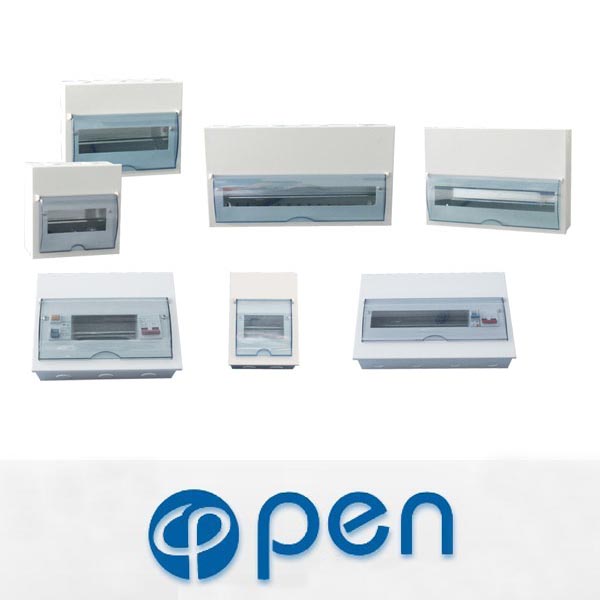

WS-MCU Series of Metal Consumer Unit
Application
1.0mm sheet cold rolled steel both on body and base
Textrued surface finish by powder coated
With transparent cover made by PC material
With terminal link and rail fixed inside the box
With flexible wires or supplied for earth connecting
Fitted with lsolater Main Switch or RCCB and MCBs.
Specifications
|
MODEL |
SPECIFICATIONS |
DESCRIPTION |
|
WSMCU-4 |
4WAY |
Main Switch or RCCB and 2 outgoing ways |
|
WSMCU-6 |
6WAY |
Main Switch or RCCB and 4 outgoing ways |
|
WSMCU-8 |
8WAY |
Main Switch or RCCB and 6 outgoing ways |
|
WSMCU-10 |
10WAY |
Main Switch or RCCB and 8 outgoing ways |
|
WSMCU-14 |
14WAY |
Main Switch or RCCB and 12 outgoing ways |
|
WSMCU-18 |
18WAY |
Main Switch or RCCB and 16 outgoing ways |
|
WSMCU-21 |
21WAY |
Main Switch or RCCB and outgoing ways |

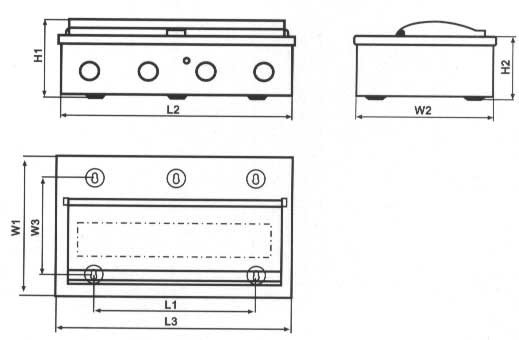

Dimensions(mm)
|
MODEL |
L1 |
L2 |
L3 |
W1 |
W2 |
W3 |
H1 |
H2 |
|
WSMCU-4 |
127 |
120 |
76 |
185 |
178 |
128 |
101 |
80 |
|
WSMCU-6 |
163 |
156 |
100 |
185 |
178 |
128 |
101 |
80 |
|
WSMCU-8 |
199 |
192 |
140 |
185 |
178 |
128 |
101 |
80 |
|
WSMCU-10 |
235 |
228 |
175 |
185 |
178 |
128 |
101 |
80 |
|
WSMCU-14 |
307 |
300 |
250 |
185 |
178 |
128 |
101 |
80 |
|
WSMCU-18 |
|
|
|
185 |
178 |
128 |
101 |
80 |
|
WSMCU-21 |
|
|
|
185 |
178 |
128 |
101 |
80 |
