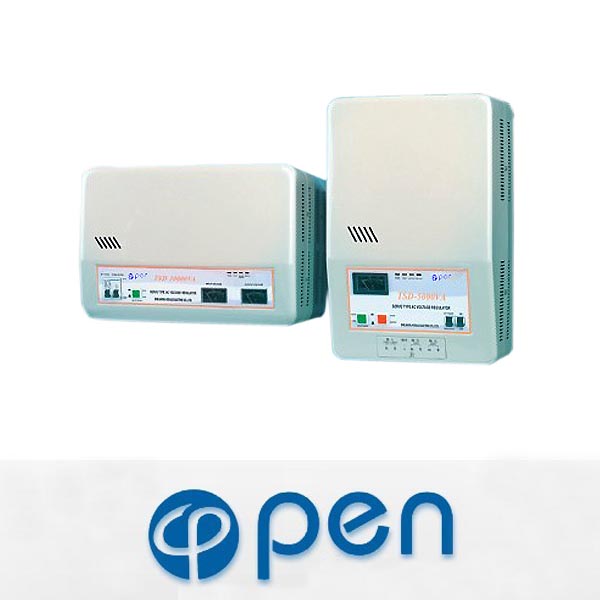

TSD Series servo AC voltage stabilizer
General

TSD Series servo AC voltage stabilizer mode AC voltage stabilizer is developed on the base of SVC series high accuracy full automatic AC voltage stabilizer.Compared with the original product,this type possesses higher quality and more functions,novel and luxurious apperance,hanging type installation for requiing small area,it forms the control system with linear integrated circuit and logical circuit,and drives the contact type voltage regulator to regulating automatically by controlling the servo motor.It adopts high precision servo voltage stabilizing technology which usually is applied to industry for civilian industry product,to conquer the weakness of instantaneous power failure of traditional switching,and consequently realize high precision and uninterrupted appliances work safely and normally and prolong their service lives effectively.it is really the only ideal protection product of household and imported top grade electrical appliances(power supply of 110V)

Application
Household appliance,industrial equipment,medical equipment,office equipment,Test equipment,lighting system,communication system,etc

Model

TSD-3000VA

TSD-5000VA

TSD-8000VA

TSD-10KVA

Package size(cm)

42×30×19.5

46.3×35.5×23

46.3×35.5×23

50×38.5×25

Current for over-current protection

15A

25A

40A

50A

input voltage

140-260V

140-260V

150-250V

output voltage

220V±3% 110V±4%

Frequency

50-60HZ

Delay time

Long Delay 3-7min,Short Delay 3-7 sec

Voltage regulating speed

>7.5V/sec

Voltage for over voltage Protection

245±5V

Ambient Temperature

-5+40

Waveform distortion

No additional waveform distortion

Insulating resistance

≥2mΩ
