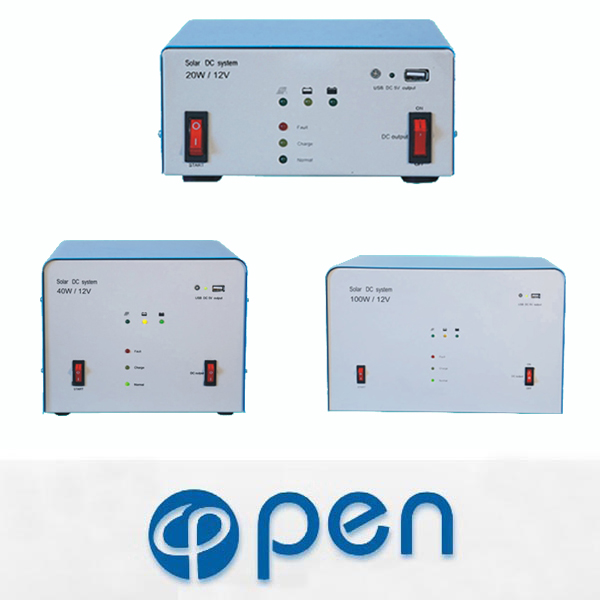

Solar integrated DC system

Solar integrated DC system
catalogue download Catalogue Download
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger Live Messenger
skype me Skype Me
e-mail us sales@opengroup.cc
Add to Basket Inquiry Basket


Main Features
1.Compact size .
2.Wide Input solar voltage Range .
3.High efficiency controller inside,save more power and space.
4.Intelligent Automatic Voltage Regulating Technology .
5.Intelligent Automatic Voltage Charging Technology .
6.Over load,short circuit protection .
7.Low battery protection .
8.Over voltage, Low voltage protection.
9.With full-meanings LED Display Design .
10.Solar controller and battery inside, only solar panel and load connection
outside, more conveniently.
11.With MP3,mobile phone USB charging function(USB 5Vdc output) .
Overview

SPECIFICATION

solar DC-20W

Solar DC-40W

Solar DC-60W

Solar DC-80W

Solar DC-100W

Solar panel INPUT parmeter

rated input panel (WATT)

20W

40W

60W

80W

100W

peak Input Voltage Vmp(V)

<17.5vdc

<17.5vdc

<17.5vdc

<17.5vdc

<17.5vdc

Peak Input Current Imp(A)

1.14A

2.29A

3.43 A

4.57 A

5.71 A

open -voltage Voc(v)

21.5V

material

polycrystal /single crystal

shortage current Isc(A)

1.29A

2.58A

3.88A

5.17A

6.46A

Battery and Back up

Battery built inside(VA)

12V/7AH

12V/24AH

12V/38AH

12V/55AH

12V/65AH

over charge protected voltage(v)

14.5V±0.2V

over charge back voltage

13.2V±0.2V

over discharge protected voltage

11.2V±0.2V

over discharge back voltage

13.1V±0.2V

DC OUTPUT

Capacity(VA)

20

40

60

80

100

Output Power(W)

20

40

60

80

100

Output Voltage

12VDC±15% (11.2-13.7Vdc)

back up time(full load)

>4hours

>4hours

>5hours

>7hours

>7hours

Output overload Current(A)

5A

8A

12A

16A

20A

USB output

DC 5V 500MA

Power Factor(PF)

1

shortage protection

yes (self-recovery fuse)

PROTECTION

Protection

over load/ over voltage/ low battery/ low voltage/

Noise(dB)

Input low/ hight voltage/ short current protection

AMBIENT

working Temperature

< 5 (1 mter)

Humidity

0~40 degree(storage -40℃~50℃)

Sea Level(m)

0~95% ( no condensation)

L×W×H

≤1500

DIMENSION

Weight(Kg)

172×190×78

238×260×178

238×260×178

392×335×180

392×335×180
