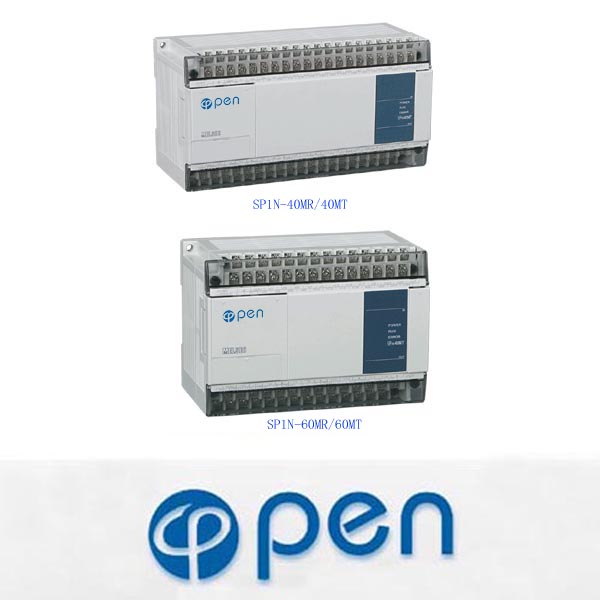

SP1N

SP1N
catalogue download Catalogue Download
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger Live Messenger
skype me Skype Me
e-mail us sales@opengroup.cc
Add to Basket Inquiry Basket


I. Introduction

SP1N series is up to 128 points of the pervasive control mini PLC. In addition to expansion of input and output, also has analog volume control and communications, the expansion of the link function. Therefore, SP1N series can be widely used in the general order of control.

Second, characteristics:
1. Integrated & cost: CPU · power input and output into one; by using the display module and the function expansion board, you can very easily upgrade their systems.
2. Fuselage compact, high-speed operation: Basic instructions :0.55-0 .7 μs / instruction; Application instruction: 3.7-Number of 100μs / instructions.
3. Use at ease, large memory and memory specifications: Built-in EEPROM memory, step 8000; no batteries, no maintenance.
4. The rich resources of soft parts: auxiliary relay: 1536 points, timer: 256 points, counter: 235 points; data register: 8000.
5. Control the size :24-128 points (basic unit: 24/40/60 points).

Project SP1S
Operational Control Cycle of scanning through the stored procedure the way, have interrupted instruction
Input and output control Batch (END instruction execution), input and output refresh, capture the pulse
Programming Language Logic ladder and instruction list (compatible with Mitsubishi software FXGP_WIN-C, Gx-DEVELOPER)
Computation time Basic instructions 0.55 TO 0.7us
Application instructions 3.7 TO Several hundred us
Memory Internal 8K Step EEPROM  With password protection
Storage Box (SP1N-EEPROM-8L 8K Step EEPROM)Optional,However,
Instruction Basic sequence instructions 27
Step ladder instructions 2
Application instructions 89Seed
Aid General 384Point        MO To M383
Locking 1152Point        M384 To M535
Special 256Point        M800 To M8255
Status General 100Point        S0 To S999
First start 10Poimt         S0 To S9
Locking All latched (S0-S127-)
Timer 100 ms 200Point          T0 To T199
10 ms 46Point          T200 To T245
1 ms 4Point            T246 To T249
100 ms Totalizer 6Point            T250 To T255
Analog Potentiometer VR1: D8030; VR2: D8031;2Point (0-255)
Counter General 16 Position 16Point         C0 To C15
 Locking 16 Position 184Point         C16  To C199
General 32 Position 20Point         C200  To C219
 Locking 32 Position 15Point         C220  To C234
High-speed counting C235-C255[1 Phase]60KHz/2Point;     10KHz/4Point
                     [2 Phase]30KHz/1Point;     5KHz/1Point
Data register General 128Point       D0 To D127
Locking 128Point       D128 To D255
File register 1500Point     D1000-D2499
External regulation 2Point            0 T0 255
Special 256Point       D800 To D8255
Change Address 16Point         V0-V7  Z0-Z7
Pointer JUMP, CALL 64Point          P0 To P63
Input interrupt 6Point            I0-I5
Nested Master with 8Point            N0-N7
Constant Decimal K 16Position    -32768 To +32767
32Position    -2147483648 To +2147483647
Hex H 16Position    0000 To FFFF
32Position    00000000 To FFFFFF
