You are here: Home >> Products >> Controller >> SP-4.3D

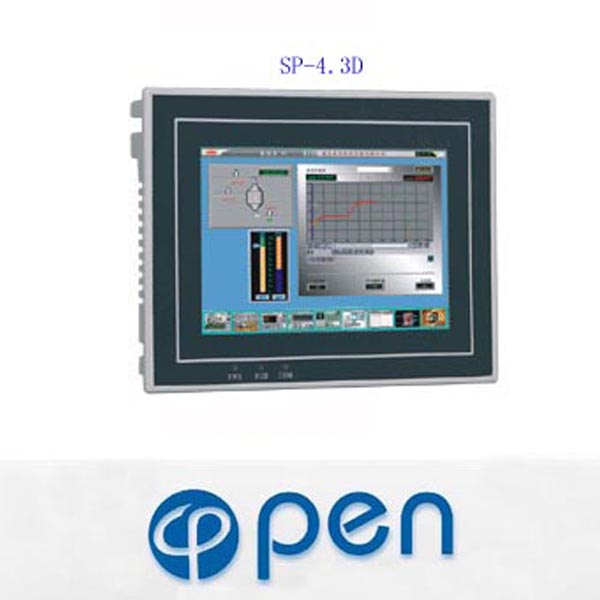

SP-4.3D

SP-4.3D

	Catalogue Download
	Print This Page
	Bookmark This Page

	Live Messenger
	Skype Me
	sales@opengroup.cc
Add to Basket Inquiry Basket

Main technical parameters
Model	SP-4.3D
Display size	4.3 "FSTN LCD
Resolution	192*64
Brightness	97cd/㎡
Color	Monochrome
Contrast
Backlight Life
Touchpad	19 freely definable keys
Communication port	RS232, RS422/485
Power Supply	DC24V(±15%)
User memory	64KB Flash ROM
Power
FCC compliance	MeetFCC,Class A
CE Certification	Meet EN50081-2 and EN50082-2 standards
Pressure test	1000vac,1Minute
Protection class	IP65 (Front Panel)
Operating temperature	0~42℃
Working humidity	10~90%RH(Non-cold-suspect)
Case Material	ABS + PC plastic
Dimensions (mm)	1759026
Installation hole size (mm)	130.0*78.0
Weight	Approximately 0.2kg
Configuration software
Exterior color	Silvery white
For PLC	All major PLC (Please provide PC model)
