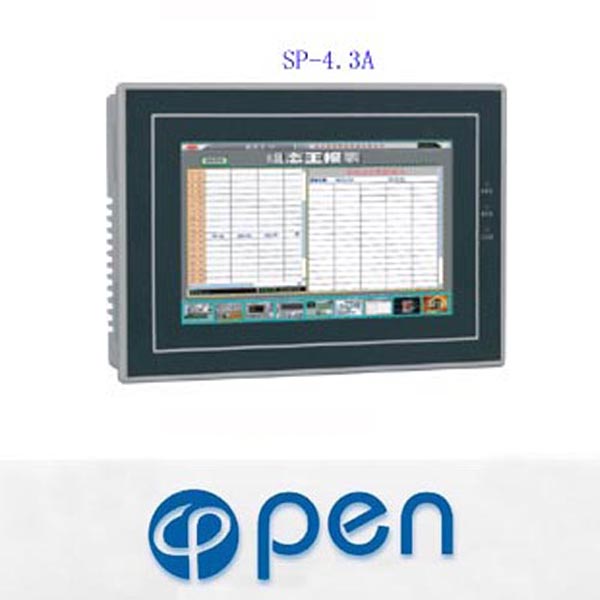

SP-4.3A

SP-4.3A

	Catalogue Download
	Print This Page
	Bookmark This Page

	Live Messenger
	Skype Me
	sales@opengroup.cc
Add to Basket Inquiry Basket

Main technical parameters
Model	SP-4.3A
Display size	4.3"(Length: width = 16:9)
Resolution	480*272
Brightness	350cd/㎡
Color	262,144 colors true color
Contrast	300:01:00
Backlight Life	50,000 hours
Touchpad	5 line high-precision touchpad
Communication port	USB, RS232,RS422/485
Power Supply	DC24V(±15%)
User memory	12W
Power	4W
FCC compliance	MeetFCC,Class A
CE Certification	Meet EN50081-2 and EN50082-2 standards
Pressure test	1000vac,1Minute
Protection class	IP65 (Front Panel)
Operating temperature	0~42℃
Working humidity	10~90%RH Suspected non-cold
Case Material	ABS + PC plastic
Dimensions (mm)	138.086.028.0
Installation hole size (mm)	130.0*78.0
Weight	Approximately 0.2kg
Configuration software	SPELENDA3.1
Exterior color	Silvery white
For PLC	All major PLC (Please provide PC model)
