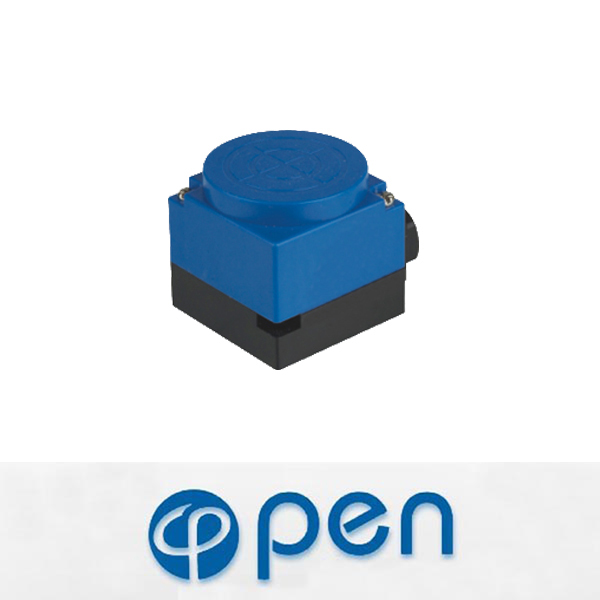

SLT9 proximity switch:

Structural category Plane installation type
outward appearance code SLT9
Flush detection distance
DC 6~36V NPN NO
NC
NO+NC
PNP NO
NC
NO+NC
Two wire system NO
NC
AC 90~250V SCR control-lable silicon NO
NC
NO+NC
relay output
Non-Flush detection distance 25mm
DC 6~36V NPN NO SLT9-6M25N1
NC SLT9-6M25N2
NO+NC SLT9-6M25N3
PNP NO SLT9-6M25P1
NC SLT9-6M25P2
NO+NC SLT9-6M25P3
Two wire system NO
NC
AC 90~250V SCR control-lable silicon NO SLT9-90M25A1
NC SLT9-90M25A2
NO+NC SLT9-90M25A3
relay output
Control output DC 300mA
SCR/relay 300mA/2A
Output voltage drop DC/AC DC3VAC10V
Consumptio current DC15mAAC10mA
Standard detected object 70*70*1(A3 iron)
Repeated precision 0.2
DC/AC Response freq. 200Hz/10Hz
Working environment temp. -25~+75
Insulation resistance 50MΩ
Shell material ABS Resin
Protection grade IP67
