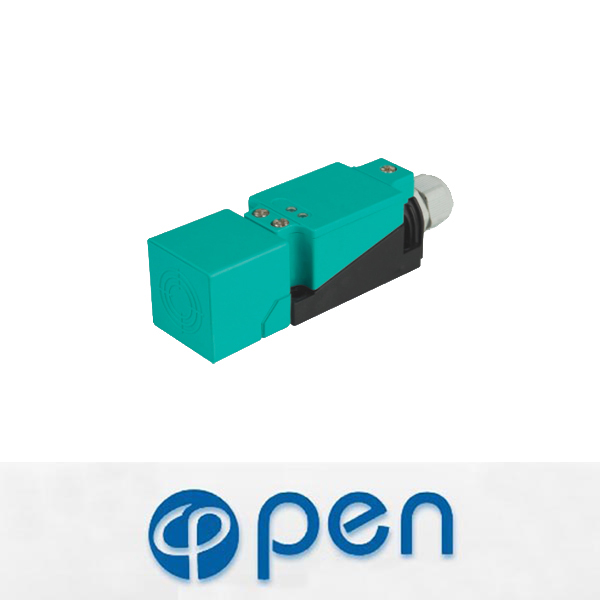

SLT5 proximity switch:
| Structural category | Angular column type | |||
| outward appearance code | SLT5 | |||
| Flush | detection distance | 15mm | ||
| DC 6~36V | NPN | NO | SLT5-6T15N1 | |
| NC | SLT5-6T15N2 | |||
| NO+NC | SLT5-6T15N3 | |||
| PNP | NO | SLT5-6T15P1 | ||
| NC | SLT5-6T15P2 | |||
| NO+NC | SLT5-6T15P3 | |||
| Two wire system | NO | SLT5-6T15D1 | ||
| NC | SLT5-6T15D2 | |||
| AC 90~250V | SCR control-lable silicon | NO | SLT5-90T15A1 | |
| NC | SLT5-90T15A2 | |||
| NO+NC | SLT5-90T15A3 | |||
| relay output | SLT5-90T15J3 | |||
| Non-Flush | detection distance | 20mm | ||
| DC 6~36V | NPN | NO | SLT5-6M20N1 | |
| NC | SLT5-6M20N2 | |||
| NO+NC | SLT5-6M20N3 | |||
| PNP | NO | SLT5-6M20P1 | ||
| NC | SLT5-6M20P2 | |||
| NO+NC | SLT5-6M20P3 | |||
| Two wire system | NO | SLT5-6M20D1 | ||
| NC | SLT5-6M20D2 | |||
| AC 90~250V | SCR control-lable silicon | NO | SLT5-90M20A1 | |
| NC | SLT5-90M20A2 | |||
| NO+NC | SLT5-90M20A3 | |||
| relay output | SLT5-90M20J3 | |||
| Control output | DC | 200mA | ||
| SCR/relay | 300mA/2A | |||
| Output voltage drop DC/AC | DC3VAC10V | |||
| Consumptio current | DC15mAAC10mA | |||
| Standard detected object | 50*50*1(A3 iron) | |||
| Repeated precision | 0.2 | |||
| DC/AC Response freq. | 200Hz/15Hz | |||
| Working environment temp. | -25~+75 | |||
| Insulation resistance | 50MΩ | |||
| Shell material | ABS Resin | |||
| Protection grade | IP67 | |||
