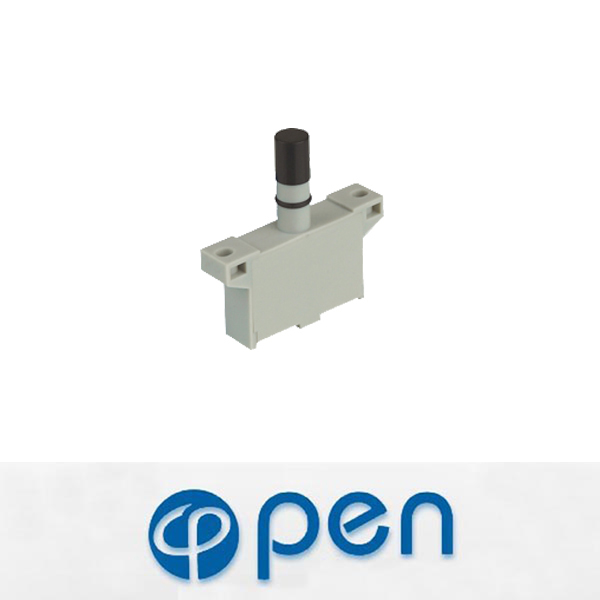

SLT2 proximity switch:
| Structural category | Angular column type | |||
| outward appearance code | SLT2 | |||
| Flush | detection distance | 2mm | ||
| DC 6~36V | NPN | NO | SLT2-6T2N1 | |
| NC | SLT2-6T2N2 | |||
| NO+NC | SLT2-6T2N3 | |||
| PNP | NO | SLT2-6T2P1 | ||
| NC | SLT2-6T2P2 | |||
| NO+NC | SLT2-6T2P3 | |||
| Two wire system | NO | SLT2-6T2D1 | ||
| NC | ||||
| AC 90~250V | SCR control-lable silicon | NO | SLT2-90T2A1 | |
| NC | SLT2-90T2A2 | |||
| NO+NC | ||||
| relay output | ||||
| Non-Flush | detection distance | 4mm | ||
| DC 6~36V | NPN | NO | SLT2-6M4N1 | |
| NC | SLT2-6M4N2 | |||
| NO+NC | SLT2-6M4N3 | |||
| PNP | NO | SLT2-6M4P1 | ||
| NC | SLT2-6M4P2 | |||
| NO+NC | SLT2-6M4P3 | |||
| Two wire system | NO | SLT2-6M4D1 | ||
| NC | ||||
| AC 90~250V | SCR control-lable silicon | NO | SLT2-90M4A1 | |
| NC | SLT2-90M4A2 | |||
| NO+NC | ||||
| relay output | ||||
| Control output | DC | 200mA | ||
| SCR/relay | 300mA/1A | |||
| Output voltage drop DC/AC | DC3VAC10V | |||
| Consumptio current | DC15mAAC10mA | |||
| Standard detected object | 15*15*F(A3 iron) | |||
| Repeated precision | 0.02 | |||
| DC/AC Response freq. | ||||
| Working environment temp. | -25~+70 | |||
| Insulation resistance | 50MΩ | |||
| Shell material | ABS Resin | |||
| Protection grade | IP67 | |||
