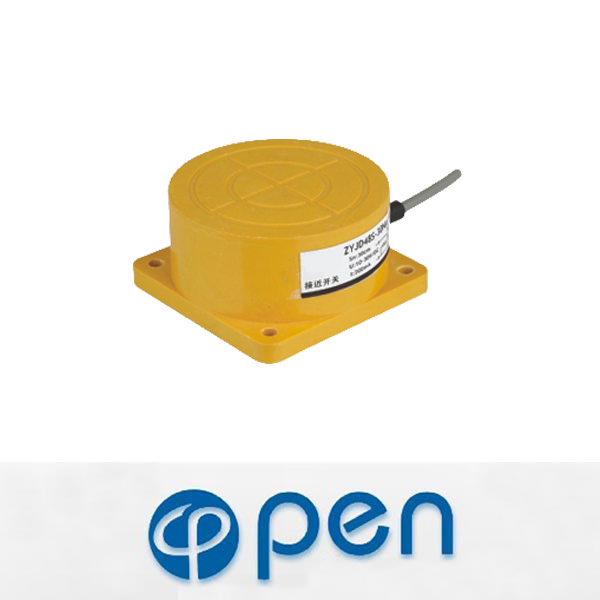

SLP4

SLP4
catalogue download Catalogue Download
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger Live Messenger
skype me Skype Me
e-mail us sales@opengroup.cc
Add to Basket Inquiry Basket


SLP4 proximity switch:

Structural category Plane installation type
outward appearance code SLP4
Flush detection distance
DC 6~36V NPN NO
NC
NO+NC
PNP NO
NC
NO+NC
Two wire system NO
NC
AC 90~250V SCR control-lable silicon NO
NC
NO+NC
relay output
Non-Flush detection distance 0-120mm
DC 6~36V NPN NO SLP4-6M120N1
NC SLP4-6M120N2
NO+NC SLP4-6M120N3
PNP NO SLP4-6M120P1
NC SLP4-6M120P2
NO+NC SLP4-6M120P3
Two wire system NO
NC
AC 90~250V SCR control-lable silicon NO SLP4-90M120A1
NC SLP4-90M120A2
NO+NC SLP4-90M120A3
relay output SLP4-90M120J3
Control output DC 200mA
SCR/relay 300mA/5A
Output voltage drop DC/AC DC3VAC10V
Consumptio current DC15mAAC10mA
Standard detected object 250*250*1(A3 iron)
Repeated precision 0.5
DC/AC Response freq. 10Hz/5Hz
Working environment temp. -25~+75
Insulation resistance 50MΩ
Shell material Resin-fiber glass
reinforced plastics
Protection grade IP65
