SLC14

SLC14

	Catalogue Download
	Print This Page
	Bookmark This Page

	Live Messenger
	Skype Me
	sales@opengroup.cc
Add to Basket Inquiry Basket

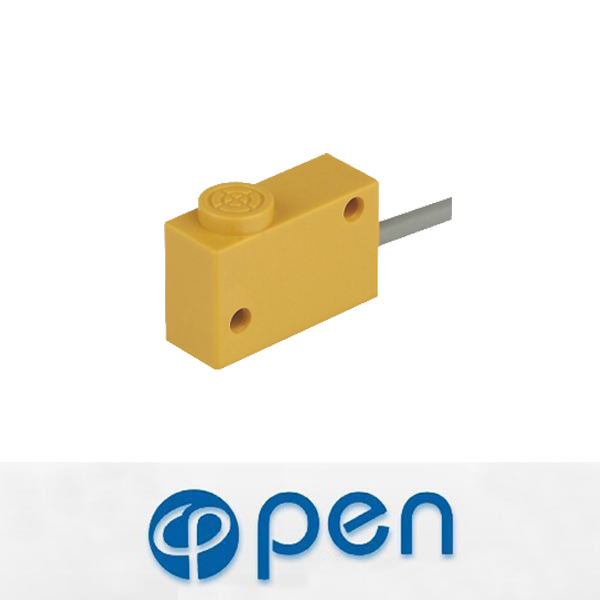

SLC14 proximity switch:

Structural category				Angular column type
outward appearance code				SLC14
Flush	detection distance
	DC 6~36V	NPN	NO
			NC
			NO+NC
		PNP	NO
			NC
			NO+NC
		Two wire system	NO
			NC
	AC 90~250V	SCR control-lable silicon	NO
			NC
			NO+NC
		relay output
Non-Flush	detection distance			4mm
	DC 6~36V	NPN	NO	SLC14-6M4N1
			NC	SLC14-6M4N2
			NO+NC
		PNP	NO	SLC14-6M4P1
			NC	SLC14-6M4P2
			NO+NC
		Two wire system	NO	SLC14-6M4D1
			NC
	AC 90~250V	SCR control-lable silicon	NO
			NC
			NO+NC
		relay output
Control output		DC		200mA
		SCR/relay
Output voltage drop DC/AC
Consumptio current
Standard detected object				12121(A3 iron)
Repeated precision				0.01
DC/AC Response freq.				500Hz/5Hz
Working environment temp.				-25~+70
Insulation resistance				50MΩ
Shell material				ABS Resin
Protection grade				IP67
