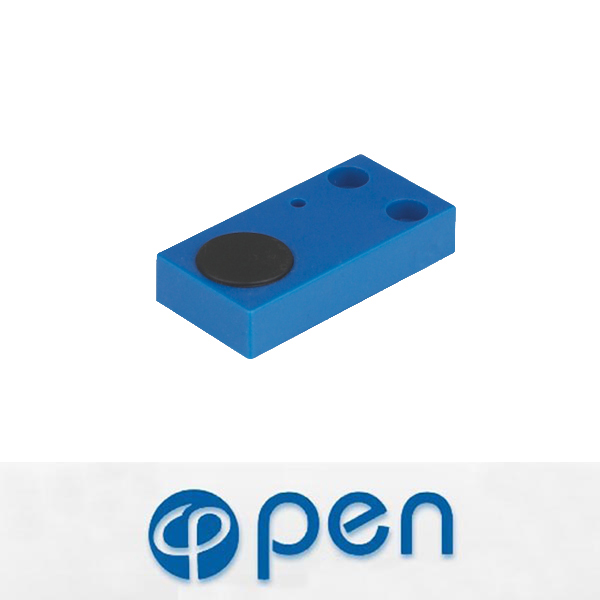

SLC13 proximity switch:
| Structural category | Angular column type | |||
| outward appearance code | SLC13 | |||
| Flush | detection distance | 5mm | ||
| DC 6~36V | NPN | NO | SLC13-6T5N1 | |
| NC | SLC13-6T5N2 | |||
| NO+NC | SLC13-6T5N3 | |||
| PNP | NO | SLC13-6T5P1 | ||
| NC | SLC13-6T5P2 | |||
| NO+NC | SLC13-6T5P3 | |||
| Two wire system | NO | SLC13-6T5D1 | ||
| NC | ||||
| AC 90~250V | SCR control-lable silicon | NO | SLC13-90T5A1 | |
| NC | SLC13-90T5A2 | |||
| NO+NC | ||||
| relay output | ||||
| Non-Flush | detection distance | 8mm | ||
| DC 6~36V | NPN | NO | SLC13-6M8N1 | |
| NC | SLC13-6M8N2 | |||
| NO+NC | SLC13-6M8N3 | |||
| PNP | NO | SLC13-6M8P1 | ||
| NC | SLC13-6M8P2 | |||
| NO+NC | SLC13-6M8P3 | |||
| Two wire system | NO | SLC13-6M8D1 | ||
| NC | SLC13-6M8D2 | |||
| AC 90~250V | SCR control-lable silicon | NO | SLC13-90M8A1 | |
| NC | SLC13-90M8A2 | |||
| NO+NC | ||||
| relay output | ||||
| Control output | DC | 200mA | ||
| SCR/relay | 300mA | |||
| Output voltage drop DC/AC | DC3VAC10V | |||
| Consumptio current | DC15mAAC10mA | |||
| Standard detected object | 25*25*1(A3 iron) | |||
| Repeated precision | 0.05 | |||
| DC/AC Response freq. | 300Hz | |||
| Working environment temp. | -25~+70 | |||
| Insulation resistance | ≥50MΩ | |||
| Shell material | ABS Resin | |||
| Protection grade | IP67 | |||
