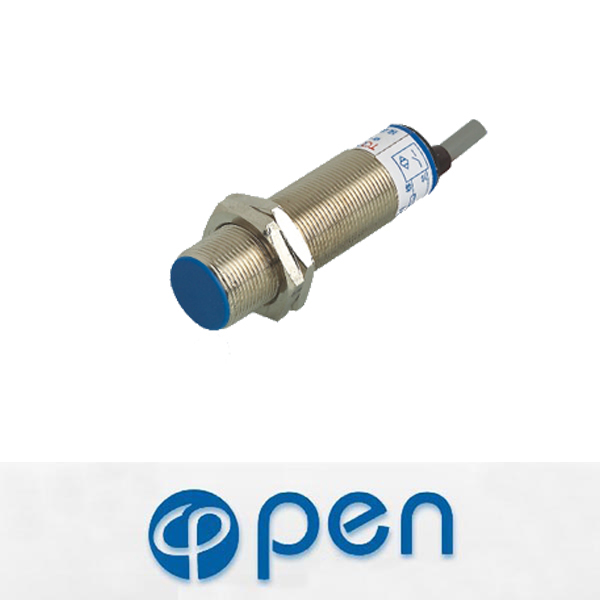

SL24 proximity switch:
| Structural category | Cylinder type | |||
| outward appearance code | SL24 | |||
| Flush | detection distance | 8mm | ||
| DC 6~36V | NPN | NO | SL24-6AT8N1 | |
| NC | SL24-6AT8N2 | |||
| NO+NC | SL24-6AT8N3 | |||
| PNP | NO | SL24-6AT8P1 | ||
| NC | SL24-6AT8P2 | |||
| NO+NC | SL24-6AT8P3 | |||
| Two wire system | NO | SL24-6AT8D1 | ||
| NC | SL24-6AT8D2 | |||
| AC 90~250V | SCR control-lable silicon | NO | SL24-90AT8A1 | |
| NC | SL24-90AT8A2 | |||
| NO+NC | SL24-90AT8A3 | |||
| relay output | ||||
| Non-Flush | detection distance | 10mm | ||
| DC 6~36V | NPN | NO | SL24-6AM10N1 | |
| NC | SL24-6AM10N2 | |||
| NO+NC | SL24-6AM10N3 | |||
| PNP | NO | SL24-6AM10P1 | ||
| NC | SL24-6AM10P2 | |||
| NO+NC | SL24-6AM10P3 | |||
| Two wire system | NO | SL24-6AM10D1 | ||
| NC | SL24-6AM10D2 | |||
| AC 90~250V | SCR control-lable silicon | NO | SL24-90AM10A1 | |
| NC | SL24-90AM10A2 | |||
| NO+NC | SL24-90AM10A3 | |||
| relay output | ||||
| Control output | DC | 200mA | ||
| SCR/relay | 300mA | |||
| Output voltage drop DC/AC | DC3VAC10V | |||
| Consumptio current | DC15mAAC10mA | |||
| Standard detected object | 24*24*1(A3 iron) | |||
| Repeated precision | 0.05 | |||
| DC/AC Response freq. | 200Hz/25Hz | |||
| Working environment temp. | -25~+75 | |||
| Insulation resistance | 50MΩ | |||
| Shell material | Metal | |||
| Protection grade | IP67 | |||
