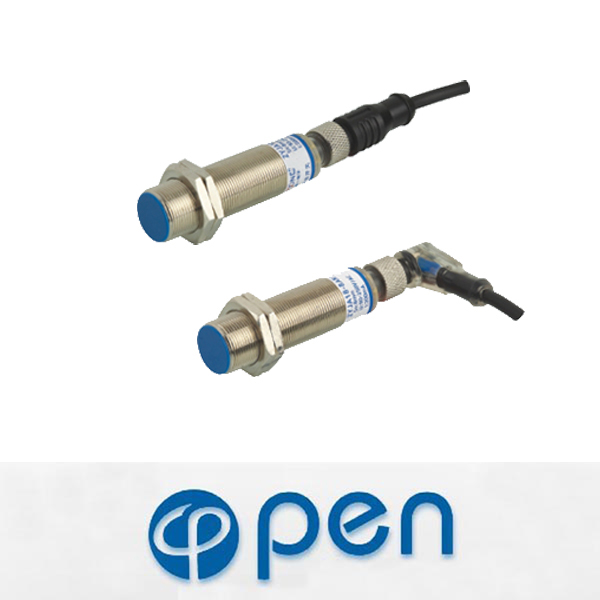

SL22-L proximity switch:
| Structural category | Connector type | |||
| outward appearance code | SL22-L | |||
| Flush | detection distance | 7mm | ||
| DC 6~36V | NPN | NO | SL22-6T7N1L | |
| NC | SL22-6T7N2L | |||
| NO+NC | SL22-6T7N3L | |||
| PNP | NO | SL22-6T7P1L | ||
| NC | SL22-6T7P2L | |||
| NO+NC | SL22-6T7P3L | |||
| Two wire system | NO | SL22-6T7D1L | ||
| NC | SL22-6T7D2L | |||
| AC 90~250V | SCR control-lable silicon | NO | SL22-90T7A1L | |
| NC | SL22-90T7A2L | |||
| NO+NC | ||||
| relay output | ||||
| Non-Flush | detection distance | 10mm | ||
| DC 6~36V | NPN | NO | SL22-6M10N1L | |
| NC | SL22-6M10N2L | |||
| NO+NC | SL22-6M10N3L | |||
| PNP | NO | SL22-6M10P1L | ||
| NC | SL22-6M10P2L | |||
| NO+NC | SL22-6M10P3L | |||
| Two wire system | NO | SL22-6M10D1L | ||
| NC | SL22-6M10D2L | |||
| AC 90~250V | SCR control-lable silicon | NO | SL22-90M10A1L | |
| NC | SL22-90M10A2L | |||
| NO+NC | ||||
| relay output | ||||
| Control output | DC | 200mA | ||
| SCR/relay | 300mA | |||
| Output voltage drop DC/AC | DC3VAC10V | |||
| Consumptio current | DC15mAAC10mA | |||
| Standard detected object | 25*25*1(A3 iron) | |||
| Repeated precision | 0.036 | |||
| DC/AC Response freq. | 200Hz/10Hz | |||
| Working environment temp. | -25~+65 | |||
| Insulation resistance | 50MΩ | |||
| Shell material | Metal | |||
| Protection grade | IP67 | |||
