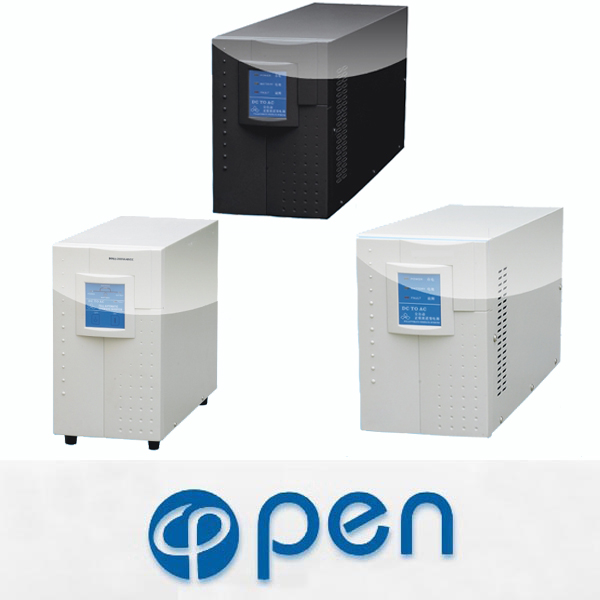

MODEL

SKN-Z500

SKN-Z1000

SKN-Z2000

SKN-Z3000

SKN-Z4000

SKN-Z5000

SPECIFICATION

DC INPUT

Input Voltage(Vdc)

12月24日

24

24/48

48

48

48

Input Current(A)

50/25

50

100/50

75

100

125

Input DC Range(Vdc)

10~15/20~30

20~30/40~60

40~60

AC BYPASS

Input AC Range(Vac)

155~280V

165-265V

Input Frequency Range(Hz)

45~55Hz

Input Current(A)

2.3

4.5

9.1

13.6

18.2

22.7

Charge Current

7~10A

13A~17A

17A~25A

Transfer Time(ms)

<=4 ms( OR 2S for generator option)

AC OUTPUT

Capacity(VA)

500

1000

2000

3000

4000

5000

Output Power(W)

350

700

1400

2100

2800

3500

Output Voltage

220VAC/110VAC

Output Frequency

50HZ/60HZ

Output Current(A)

1.6

3.2

6.4

9.5

12.7

15.9

Voltage Precision(VAC)

220±3%

Frequency Precision(HZ)

50±1%/60±1%

Wave Distortion(TCKJ)

<=3%

Power Factor(PF)

0.7

Overload Capacity

100%~120%, 25 mins, 120%~200%, 1 mins, >200%, 0.1 mins

Inversion Efficiency

85%

Bypass Transfer time(ms)

<=4 ms

PROTECTION

Protection

over temperature/ over load/ over voltage/

 low battery/ low voltage/ Input low/ hight voltage/ short current protection

AMBIENT

Noise(dB)

<=40 (1 mter)

Temperature

-20~45 degree

Humidity

0~95% ( no condensation)

Sea Level(m)

<=1500

DIMENSION

Package L×W×H

520×240×327

600×335×475

Weight(Kg)

9.5

15

22

28

39

43.5
