SC(B)10KV

SC(B)10KV

	Catalogue Download
	Print This Page
	Bookmark This Page

	Live Messenger
	Skype Me
	sales@opengroup.cc
Add to Basket Inquiry Basket

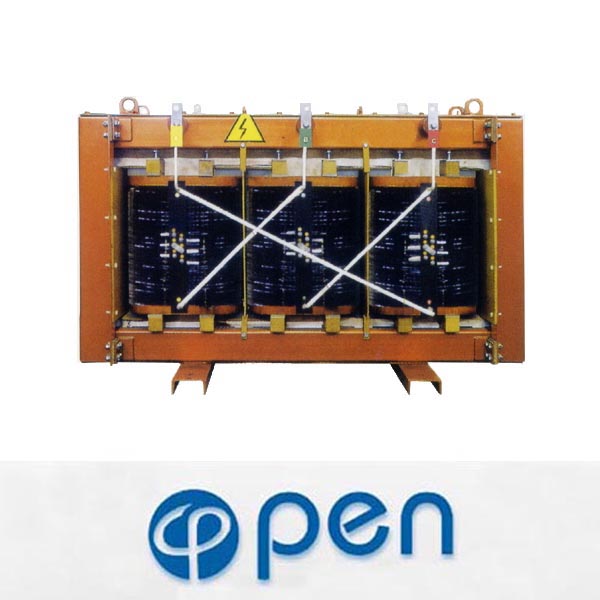

Resin insulation amorphous metal dry-type power transformer

Tech. data of 10kV SC (B) H10 series transformer:

rated capacity (kVA)	voltage group		connection method	Loss		no-l oad curr ent	impedance voltage	insulating level	weig ht
rated capacity (kVA)	High- voltage	Low- voltage	connection method	no-load	load	no-l oad curr ent	impedance voltage	insulating level	weig ht
100	11 10.5 10 6.3 6	0.4	Dyn11 or Yyno	0.013	1.570	0.8	4	F/F	890
160				0.017	2.100	0.8			1170
200				0.200	2.500	0.7			1400
250				0.230	2.750	0.7			1560
315				0.280	3.460	0.6			1770
400				0.300	3.980	0.6			2180
500				0.360	4.870	0.6			2440
630				0.420	5.870	0.5	6		2850
800				0.480	6.950	0.5			3430
1000				0.550	8.100	0.4			4050
1250				0.660	9.700	0.4			4690
1600				0.750	11.70	0.4			5610
2000				1.040	14.45				5820
2500				1.250	17.17				6730
