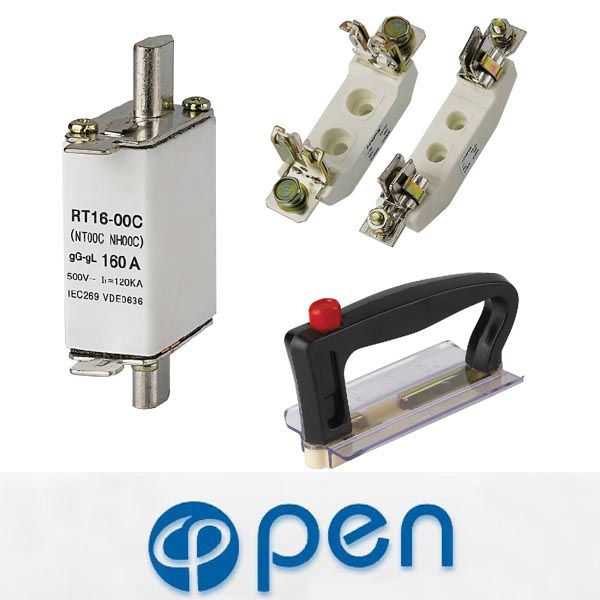

RT16(NT)Series knifecontactor fuse

■Scope of application

It is applicable indusrtial electrial distributing installation of AC50Hz(or60Hz)rated voltage 500/690V and 400V,rated current 1250A and below.It is provided with the fenction of the protection against overload or short eircuit.

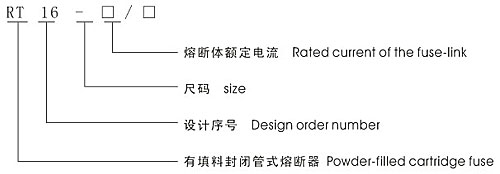

■Type and meaning

■Main technical parameter

Type	Rated voltage	Rated cuttent		Rated breaking capacity			Rated power dissipation of fuse-link	Weight of base	Weight of fuse-link
		Base	Fuse-link	500V	690V	COSφ
RT16-00	500V 690V	160	2,4,6,8,10,12,16,20, 25,32,40,50,63,80,100	120	50	0.1~0.2	≤12	200	170
			125,160		-
RT16-0		160	2,4,6,8,10,12,16,20,25, 32,40,50,63,80,100		50		≤25	300	280
			125,160		-
RT16-1		250	80,100,125,160,200		50		≤32	700	450
			250		-
RT16-2		400	125,160,200,250,315		50		≤45	1150	660
			400		-
RT16-3		630	315,400,500		50		≤60	1280	850
			630		-
RT16-4	400V	1250	700,800,1000,1250	400V 100kA			≤110	3400	2480

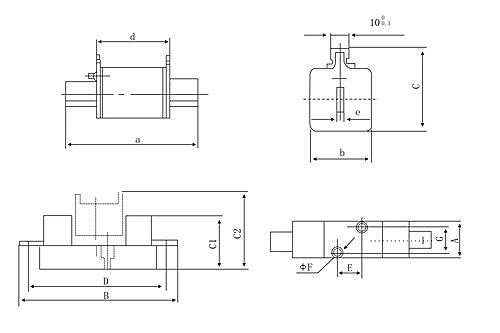

■Outline and installation

■Main technical parameter

Type	RT16-00	RT16-0	RT16-1	RT16-2	RT16-3	RT16-4(RT17)
a	78.5	125	135	150	150	200
b	29	29	48	58	67	85
c	57	57	62	72	85	115
d	49	67	67	67	67	87
e	6	6	6	6	6	8
A	30	30	58	60	60	100
B	120	170	200	250	250	300
C1	61	73	83	99	105	150
C2	85	93	96	112	120	170
D	100	150	175	200	210	260
E	25	25	25	25	25	30
F	7.5	7.5	10.5	10.5	10.5	13
G	--	--	30	30	30	40

■Fuse-carrier

Mainly used to assemnble and change RT16 senes low-voltage high breaking fuses in the circuit
of rated voltage up to 1000V.
