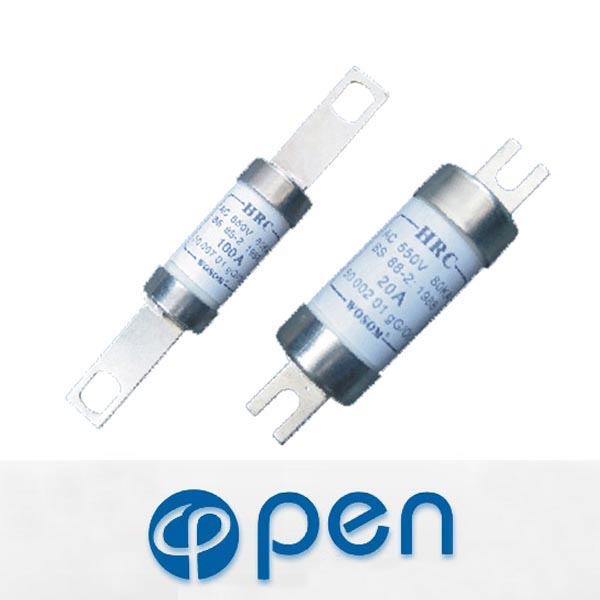

Model RT12 Bolting Fuse is adaptable to the distribution equipment with 415V voltage rating and up to 100V rated current to protect the overload and short circuit.This product accords with IEC269-1.3 and JB/D24274-87.
Rated Breaking Current:up to 100KA
Conformative standards:GB13539.1 GB13539.2 IEC60269-1 IEC60269-4.

type	Rated current(A)	Rated voltage(V)	rated power	weight
RT12-20 RGO RGOK	2 4 6 10 16 20	415	<8	0.015
RT12-32 R1 RGO3	20 25 32	415	<4.75	0.06
RT12-63 RG2	32 40 50 63	415	<7.75	0.08
RT12-100 RG7	63 80 100	415	<10.5	0.14
