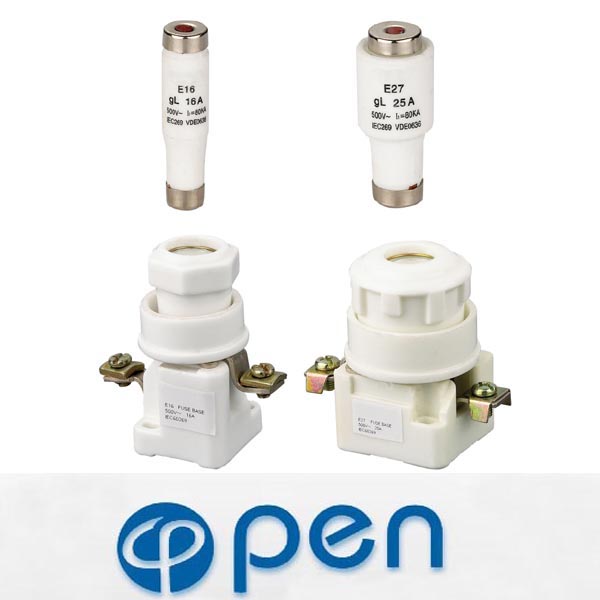

RL6 series screw-type fuse

■Scope of application

It is applicable cricuit of AC50Hz(60Hz), rated voltage up to AC500V, rated current up to 63A used for funtion of the protection against short citucit or overload for electrical installation.

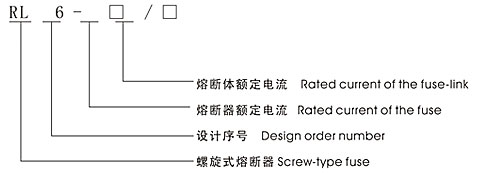

■Type and meaning

■Main technical parameter

Type	Rated voltage	Rated cuttent		Rated breaking capacity		Rated power dissipation of fuse-link	Weight of Holder	Weight of fuse-link
Type	Rated voltage	Holder	Fuse-link	l1 kA	COSφ	Rated power dissipation of fuse-link	Weight of Holder	Weight of fuse-link
RL6-16	500V	16	2,4,5,6,10,16,20,25	80	0.1~0.2	≤5	95	40
RL6-25		25	2,4,5,6,10,16,20,25	≤7.5		120	52
RL6-63		63	30,35,40,50,63	≤15		155	71

■Outline and installation

1、The outline size of the fuse-link see the following map and table

Type	RL6-16				RL6-25					RL6-63
	2-6	10	16	20-25	2-6	8-10	16	20	25	30-40	50	60-63
A	50				50
B	12.5				21					27
C	11.3				13					20
D	6	8	10	12	6	8	10	12	14	16	18	20

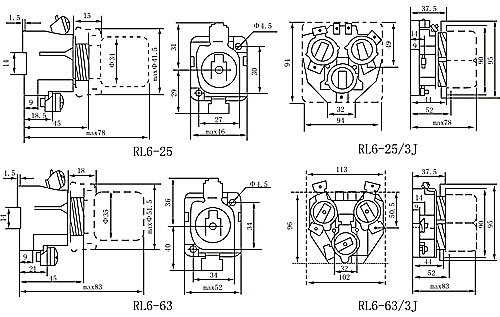

2、The outline installation size of the holder of the fuse see the following map
