product model

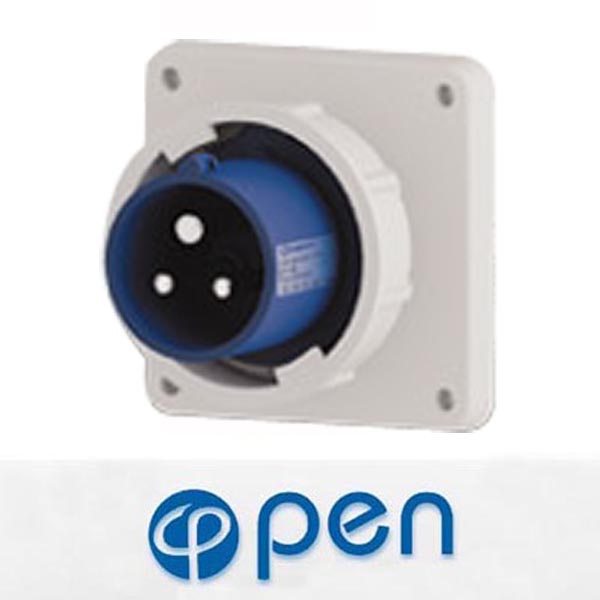

Panel Mounted Plug

IP67 CEE/IEC Attachment plug,Nickel-plated bolt. Conform to European/international standards EN/IEC60309-2

>> JPG Download

Product details

Current

Poles

110V
50a.60Hz

230V
50a.60Hz

400V
50a.60Hz

500V
50a.60Hz

＞50-500
100-300Hz

＞50-500
a.300-500Hz

Packing unit

Weight

3Pole
4h

4Pole
4h

5Pole
4h

3Pole
6h

4Pole
9h

5Pole
9h

3Pole
9h

4Pole
6h

5Pole
6h

3Pole
7h

4Pole
7h

5Pole
7h

3Pole
10h

4Pole
10h

5Pole
10h

3Pole
2h

4Pole
2h

5Pole
2h

QX831

234

QX832

235

QX834

292

1MB 219 1MB 403	Amp	32			Amp	32
1MB 219 1MB 403	Poles	3	4	5	Poles	3	4	5

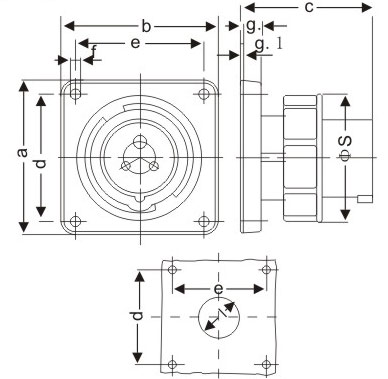

size mm Max cable diameter(mm) Conductor cross- sectional area(mm²) Min.To Max	a	85.7	85.7	85.7	l	47	47	47
	b	85.7	85.7	85.7	s	94	94	102
	c	72	72	72	Conductor crossectional area(mm²)Min.To Max
	d	69.5	69.5	69.5	Conductor crossectional area(mm²)Min.To Max
	e	69.5	69.5	69.5	2.5-10
	f	5.5	5.5	5.5
	g.	11	11	11
	g.1	2	2	2
