QX1270

QX1270

	Catalogue Download
	Print This Page
	Bookmark This Page

	Live Messenger
	Skype Me
	sales@opengroup.cc
Add to Basket Inquiry Basket

product model

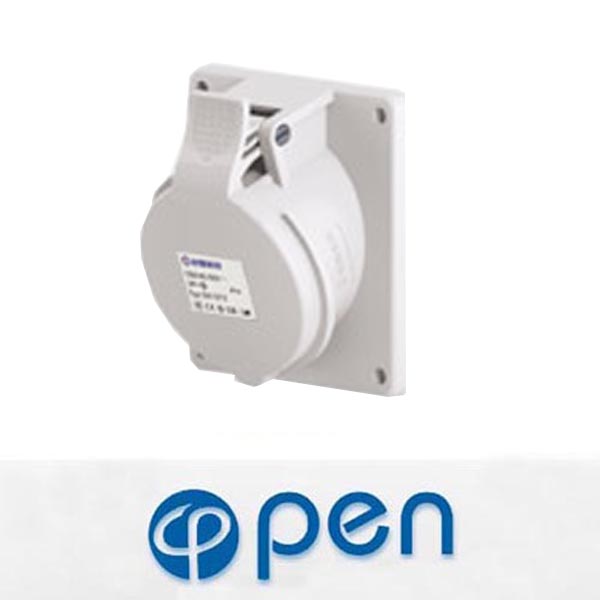

Low-Voltage Panel Mounted Sockets

IP44 CEE/IEC Additional sockets. Conform to European/international standards EN/IEC60309-2

>> JPG Download

Product details

Current

Poles

20-25V
50a.60Hz

40-50V
50a.60Hz

Current

Voltage

Clamping insert access

Screw terminals

Packing unit

Weight

12h

16

2

QX1270

QX2855

10

125

16

3

QX2845

QX1272

10

145

1MB 136	Amp	16		Amp	16
1MB 136	Poles	2	3	Poles	3	4

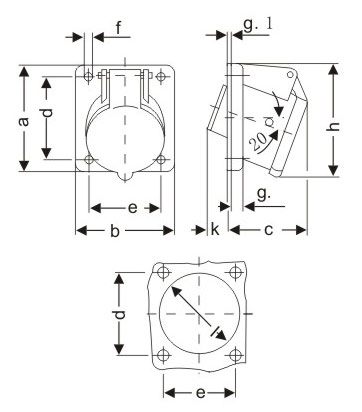

size mm Max cable diameter(mm) Conductor cross- sectional area(mm2) Min.To Max	a	68	68	h	72	72
	b	62	62	h1	32	32
	c	42	42	k	55	55
	d	53	53	l	4	4
	e	47	47	l1	-10	-10
	f	4.5	4.5
	g	8	8
	g.1	2	2
