product model

Sockets

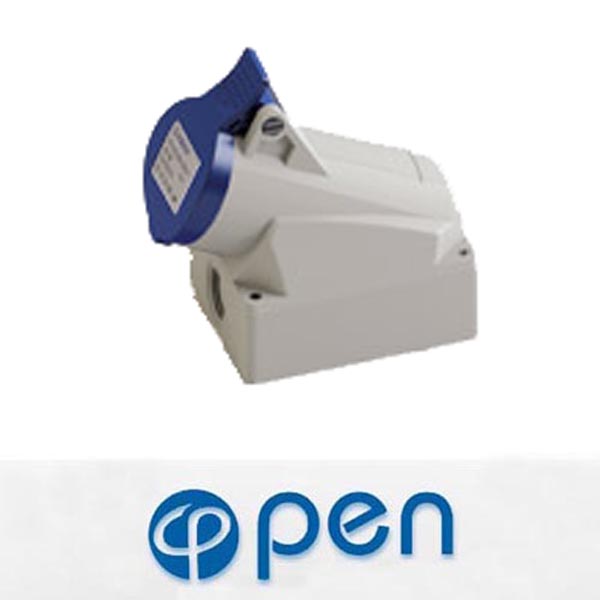

IP44 CEE/IEC Socket,cable penetration from the top and bottom. Conform to European/international standards EN/IEC60309-2

>> JPG Download

Product details

Current

Poles

110V
50a.60Hz

230V
50a.60Hz

400V
50a.60Hz

500V
50a.60Hz

＞50-500
100-300Hz

＞50-500
a.300-500Hz

Packing unit

Weight

3Pole
4h

4Pole
4h

5Pole
4h

3Pole
6h

4Pole
9h

5Pole
9h

3Pole
9h

4Pole
6h

5Pole
6h

3Pole
7h

4Pole
7h

5Pole
7h

3Pole
10h

4Pole
10h

5Pole
10h

3Pole
2h

4Pole
2h

5Pole
2h

QX100

QX101

183

QX103

QX105

235

QX109

QX111

257

1MB 209	Amp	16			Amp	16
1MB 209	Poles	3	4	5	Poles	3	4	5

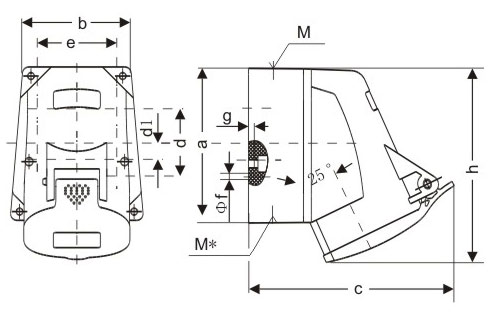

size mm Max cable diameter(mm) Conductor cross- sectional area(mm²) Min.To Max	a	87	100	100	M	20	20	20
	b	64	75	75	M+	Blind cable entry Can Cut
	c	99	110	113	M+	Blind cable entry Can Cut
	d	40	-	-	Max cableb diameter(mm)
	d1	-	11	11	13
	e	50	59	59	Conductor crossectional area(mm²)Min.To Max
	f	4.5	5	5		1.5-4
	g	4	4	4
	h	115	125	128
