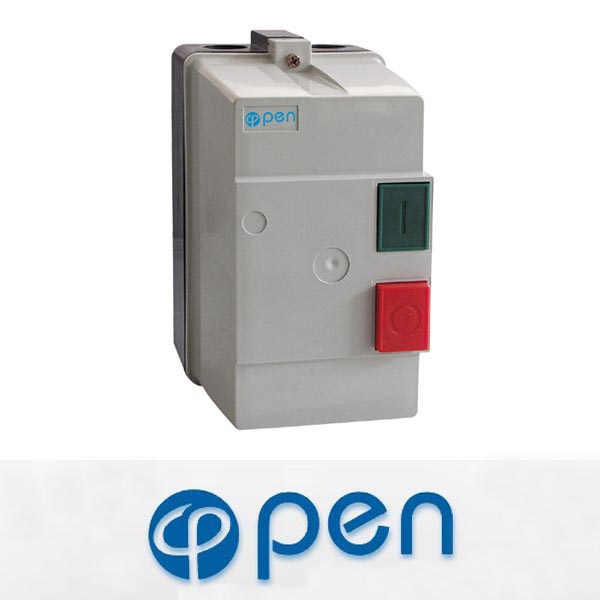

QCX2 series magnetic starter is mainly applied to circuit of AC 50 or 60Hz,voltage up to 550Vfor far distance making and breaking circuit and frequently starting and controlling motor. It hasthe features of small volume, light weight, low power consumption, high efficiency, safe andreliable performance. It complies to IEC947-4-1.
|
Type |
Rated |
Maximum Power AC3 duty (KW) |
SuitableThermal Relay(A) |
|||||
|
220V |
380V |
415V |
440V |
500V |
660V |
|||
|
QCX2-9 |
9 |
2.2 |
4 |
4 |
4 |
5.5 |
5.5 |
JR28 D1312 |
|
QCX2-12 |
12 |
3 |
5.5 |
5.5 |
5.5 |
7.5 |
7.5 |
JR28 D1316 |
|
QCX2-18 |
18 |
4 |
7.5 |
9 |
9 |
10 |
10 |
JR28 D1321 |
|
QCX2-25 |
25 |
5.5 |
11 |
11 |
11 |
15 |
15 |
JR28 D1322 |
|
QCX2-32 |
32 |
7.5 |
15 |
15 |
15 |
18.5 |
18.5 |
JR28 D2355 |
|
QCX2-40 |
40 |
11 |
18.5 |
22 |
22 |
22 |
30 |
JR28 D3353 |
|
QCX2-50 |
50 |
15 |
22 |
25 |
30 |
30 |
33 |
JR28 D3357 |
|
QCX2-65 |
65 |
18.5 |
30 |
37 |
37 |
37 |
37 |
JR28 D3361 |
|
QCX2-80 |
80 |
22 |
37 |
45 |
45 |
55 |
45 |
JR28 D3363 |
|
QCX2-95 |
95 |
25 |
45 |
45 |
45 |
55 |
45 |
JR28 D3365 |
