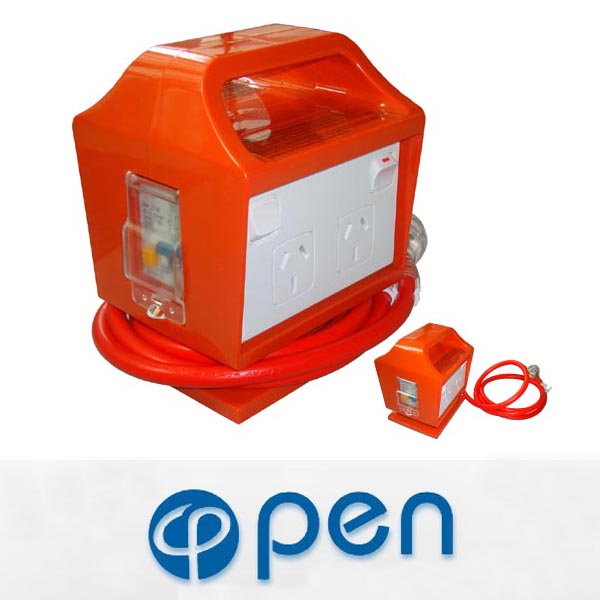

Portable Power Station

Portable Power Station
catalogue download Catalogue Download
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger Live Messenger
skype me Skype Me
e-mail us sales@opengroup.cc
Add to Basket Inquiry Basket


 The Portable Power Station has been tested against,and is compliant with AS/NZS 3190:2009,the latest standard for Portable Residual Current Devices, approved for use on construction, demolition and industrial sites. This product is designed to protect the safety of tradesmen and construciton workers, while providing maximum protection for valuable electrical equipment.

IMPORTANT:
The Portable Power Station should be used to provide additional electrical safety when using electrical appliances.It should not be used as a substitute to safe electrical practices and regular electrical safety maintenance in and around the home or workplace.
● This power station is suitable for devices rated 10 amps and under including, power drills,circular saws, jigsaws, grinders, chainsaws, hedge trimmers and vacuum cleaners. Always check the amp rating of your appliance before use with this portable power station.
● Plug directly into fixed power points only. Do not connect to the socket of on extension lead or other portable power supply sockets including powerboards.
● Ensure the 1.8m lead is completely incoiled before use. If the lead becomes damaged, discontinue use immediately
● Ensure RCBO is in the ON positon before use
● Always test RCBO before use according to the instructions on the side panel of this box. If the test button fails to trip power to connected appliances, discontinue use immediately and consult advice from a licensed electrician or the Distributor.
● If the RCBO on the Portable Power Station continually trips during operation, one or more of your electrical appliances may be faulty. If this is the case, discontinue use of Portable Power Station and have it checked by a licensed electrician. Connected appliances should also be checked by a licensed electrician.
● This unit has an IP33 weatherproof rating and is designed for use in dry conditions. Do not use or store in on area that may be exposed to rain, excess dust or dirt
● Never submerse in water or any other liquid
● Keep unit clean form dirt and dust by wiping with a dry cloth regularly
● Do not allow Power Station to come into contact with petroleum products, alkaline detergents or cleaners
● If the unit becomes damaged as a result of being dropped or submersed in water or another liquid, discontinue use and have a licensed electrician test the unit before using again
● Unplug all appliances before any inspection or repair of that equipment is attempted. Note, this product does not include any serviceable parts and repairs should only be attempted by a licensed electrician . If the unit is not working and is covered within the warranty period, return to place of purchase .
● This Portable Power Station provides protection against faults to earth through the body. It does not provide protection against electric shock caused by neutral faults on an electrical circuit.

Combining residual current prolection with overlood and short circuit protection,the Safeguard
Portable Power Station is designed to protect electrocution while valuable eletrical equipment.

Residual current circuit breaker
When the flow of current in an electrcal appliance is not balanced between the active conductor and neutral conductor, this may flow to the earth causing current leakage through the body of a person who comes into contact with the appliance.This contact may result in electric shock.
The Residual Current Circuit Breaker in the RCBO is designed to detect current leakage and respond cutting power to the appliance quickly enough to prevent electrocution.

Overload protection
The RCBO switch is also designed to cut power from the Portable Power Station preventing damage to your electrical equipment in the event devices are incorrectly installed,suffer a short circuit or are rated in excess of 10 amps.

Safely Test Button
For added safety this portable power station is fitted with a test button allowing you to check that the RCBO is properly functioning.

ALWAYS TEST BEFORE USE AND DISCONTINUE USE IF TEST FALLS.
To test,plug Portable Power Station into power socket and turn power on.
With the RCBO in the ON position,press the test button.Pressing the test button should trip the RCBO and cut power if it is functioning properly.If the RCBO fails to trip,discontinue use immediately. If the unit is functioning properly, reset power by moving the RCBO to the ON postion and use as normal.



● RCBO (Residual Current Circuit Breaker with Overload Protection)
- Trip current 30mA
- 10A overload protecion
● Test button for added safely
● AS/NZS 3190:2009 and AS/NZS 3012 compliant
- Suitable for construction sites, industrial sites and workahops
● 4 outlets (2×double power points)
- Double pole with individual ON/OFF switches
● 10 amp plug
- Clear cover for safe wiring inspection
● 1.8 metre 3 core 1.5mm extra heavy duty lead
- Cord management base and cable clip for fidy storage
● Robust plastic construction with orange finish
- Durable and high visibility for construction sites
Product Specifications
Voltage: 230-240V a.c. 50Hz
Max. load: 2400W 10A
Residual current rating: 30mA
Typical trip time: 20ms
Maximum trip time: 40ms
IP rating: IP33

 The Portable Power Station has been tested against,and is compliant with AS/NZS 3190:2009,the latest standard for Portable Residual Current Devices, approved for use on construction, demolition and industrial sites. This product is designed to protect the safety of tradesmen and construciton workers, while providing maximum protection for valuable electrical equipment.

IMPORTANT:
The Portable Power Station should be used to provide additional electrical safety when using electrical appliances.It should not be used as a substitute to safe electrical practices and regular electrical safety maintenance in and around the home or workplace.
● This power station is suitable for devices rated 10 amps and under including, power drills,circular saws, jigsaws, grinders, chainsaws, hedge trimmers and vacuum cleaners. Always check the amp rating of your appliance before use with this portable power station.
● Plug directly into fixed power points only. Do not connect to the socket of on extension lead or other portable power supply sockets including powerboards.
● Ensure the 1.8m lead is completely incoiled before use. If the lead becomes damaged, discontinue use immediately
● Ensure RCBO is in the ON positon before use
● Always test RCBO before use according to the instructions on the side panel of this box. If the test button fails to trip power to connected appliances, discontinue use immediately and consult advice from a licensed electrician or the Distributor.
● If the RCBO on the Portable Power Station continually trips during operation, one or more of your electrical appliances may be faulty. If this is the case, discontinue use of Portable Power Station and have it checked by a licensed electrician. Connected appliances should also be checked by a licensed electrician.
● This unit has an IP33 weatherproof rating and is designed for use in dry conditions. Do not use or store in on area that may be exposed to rain, excess dust or dirt
● Never submerse in water or any other liquid
● Keep unit clean form dirt and dust by wiping with a dry cloth regularly
● Do not allow Power Station to come into contact with petroleum products, alkaline detergents or cleaners
● If the unit becomes damaged as a result of being dropped or submersed in water or another liquid, discontinue use and have a licensed electrician test the unit before using again
● Unplug all appliances before any inspection or repair of that equipment is attempted. Note, this product does not include any serviceable parts and repairs should only be attempted by a licensed electrician . If the unit is not working and is covered within the warranty period, return to place of purchase .
● This Portable Power Station provides protection against faults to earth through the body. It does not provide protection against electric shock caused by neutral faults on an electrical circuit.

Combining residual current prolection with overlood and short circuit protection,the Safeguard
Portable Power Station is designed to protect electrocution while valuable eletrical equipment.

Residual current circuit breaker
When the flow of current in an electrcal appliance is not balanced between the active conductor and neutral conductor, this may flow to the earth causing current leakage through the body of a person who comes into contact with the appliance.This contact may result in electric shock.
The Residual Current Circuit Breaker in the RCBO is designed to detect current leakage and respond cutting power to the appliance quickly enough to prevent electrocution.

Overload protection
The RCBO switch is also designed to cut power from the Portable Power Station preventing damage to your electrical equipment in the event devices are incorrectly installed,suffer a short circuit or are rated in excess of 10 amps.

Safely Test Button
For added safety this portable power station is fitted with a test button allowing you to check that the RCBO is properly functioning.

ALWAYS TEST BEFORE USE AND DISCONTINUE USE IF TEST FALLS.
To test,plug Portable Power Station into power socket and turn power on.
With the RCBO in the ON position,press the test button.Pressing the test button should trip the RCBO and cut power if it is functioning properly.If the RCBO fails to trip,discontinue use immediately. If the unit is functioning properly, reset power by moving the RCBO to the ON postion and use as normal.



● RCBO (Residual Current Circuit Breaker with Overload Protection)
- Trip current 30mA
- 10A overload protecion
● Test button for added safely
● AS/NZS 3190:2009 and AS/NZS 3012 compliant
- Suitable for construction sites, industrial sites and workahops
● 4 outlets (2×double power points)
- Double pole with individual ON/OFF switches
● 10 amp plug
- Clear cover for safe wiring inspection
● 1.8 metre 3 core 1.5mm extra heavy duty lead
- Cord management base and cable clip for fidy storage
● Robust plastic construction with orange finish
- Durable and high visibility for construction sites
Product Specifications
Voltage: 230-240V a.c. 50Hz
Max. load: 2400W 10A
Residual current rating: 30mA
Typical trip time: 20ms
Maximum trip time: 40ms
IP rating: IP33
