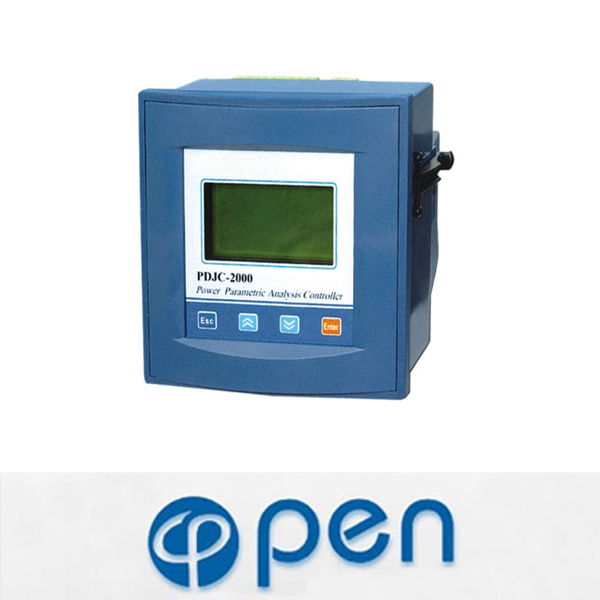

PDJC-2000 power auto-compensation controller
A) General Description
The reactive power auto-compensation controller is the auxiliary product for low voltage capacitor screen. According to the different demands of users, our company developed successfully the JKL1B, JKG2B, JKGF, JKL5C, JKL8C, JKW5C, and JKW8C intelligent series of controller; Number of the channels controlled is 2,4,6,8,10 and 12 available. All of these devices are controlled by the microcomputer. With the advanced technology, they have complete range of functions, rather strong anti-interference ability, stable and reliable operation, accurate compensation and novel appearance, so they are the preferred products of capacitor screen manufacturers.
B) Service Conditions
⊙Altitude no higher than 2500M
⊙Ambient temperature -5℃~+40℃
⊙relative humidity ≤50% at 40℃ and ≤90% at 20℃.
⊙No corrosive gas, inductive dust, and inflammable and explosive media in the ambient environment.
⊙The mounting position should be protected against violent vibration.
| Ⅳ、Main Technical parameter | ||||
| Items | JKLIB | JKLC5 | JKG2B | JKGF |
| Ratd working voltage | 380V±10%,50Hz | 380V±10%,50Hz | 220V±10%,50Hz | 220V±10%,50Hz |
| Sampled nput curreent | AC, Ii≤5A | AC, Ii≤5A | AC, Ii≤5A | AC, Ii≤5A |
| Ouput ontact capatity | 220V x 5A,380V x 3A | 220V x 5A,380V x 3A | 220V x 5A,380V x 3A | 220V x 5A,380V x 3A |
| Dielectric | AC3000V | AC3000V | AC3000V | AC3000V |
| Working method | Continuous | Continuous | Continuous | Continuous |
| Swith off thresshold | >1.1Ic,1.1Ic | >1.1Ic,1.1Ic | cosθ< 0.93 | cosθ< 0.93 |
| Switching off threshold | > 0.5IC | > 0.5IC | cosθ< 0.98 | cosθ< 0.98 |
| Swithching time dalay | 1-99s adjustable | 10-100s adjustable | 10-90s adjustable | 40s adjustable |
| Over voltge protection | 400-440V adjustable | 400-440V adjustable | 230-250V adjustable | 230-250V djustable |
| Phase sequence of sampling singal | Automatic identifying | Automatic identifying | Automatic identifying | |
| self-checking function | yes | yes | yes | yes |
| Channels controlled | 4，6，8，10 | 4，6，8，10，12 | 4，6，8，10 | 4，6，8，10 |
| Overall wattage dissipation | 10W | 10W | 15W | 10W |
| Overall Weiht | 1.5kg | 1.35kg | 1.8kg | 1.00kg |
| size of mounting hole | 140 x 102 mm | 113 x 113mm | 162 x 102 mm | 163 x 102mm |
