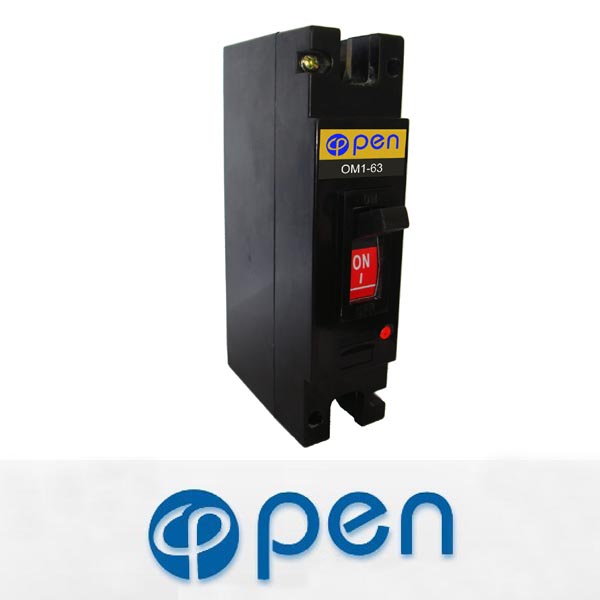

OM1 1P

Products

Electrical Distribution (178)

- MCB (12)
- RCCB RCBO (12)
- MCCB (10)
- ACB (2)
- Fuse (31)
- Switch (16)
- Surge protective device (9)
- Weatherproof switch (5)
- Distribution box (53)
- Automatic transfer switch (8)
- 16 series (20)

Industrial Control (517)

Power Management (534)

- Voltage stabilizers/regulators (16)
- Controllers (12)
- Capacitor (73)
- Transformers (28)
- Power transformers (13)
- Motor soft start,inverters (5)
- Energy meter (246)
- UPS (19)
- Industrial plugs and sockets (84)
- Power System Test Equipment (8)
- Inverter (9)
- Solar Power/Battery (9)
- Control Protective Switching Device (12)

Search Catalog

You are here: Home >> Products >> MCCB >> OM1 1P

	Catalogue Download
	Print This Page
	Bookmark This Page

	Live Messenger
	Skype Me
	sales@opengroup.cc
Add to Basket Inquiry Basket

1. Application
0M1 series moulded case circuit breaker is one of products developed and manufactured byadopting international advanced technology. It is supplied with rated insulating voltage 800Vand used for circuit of A.C. 50Hz, rated operating voltage AC 400V (or below), rated operatingcurrent up to 800A for infrequent changing over and starting of the motors.The products con-forms to IEC60947-2 standard.

2. Main Technical Specification(table1)

Type	Rated current (A)	Polenum-ber	Ratedinsui-atingvolt-age(V)	Rated operat-ingvolt-age(V)	Arcing- over distance (mm)	Ultimate short circuit breaking capacity (KA)	Servies short circuit breaking capacity (KA)	Operation perform- ance		Utiliza-tioncat-egory
								Load	Unload
0M1-63L	(6),10 16,20 25 ,32 40,50 63	1	690V	400V 690V	0	25	18	1500	8500	A
0M1-63M					0	50	35
0M1-100L	(10),16 20,25 32,40 50,63 80,100		800V		0(≤50)	35	22
0M1-100M					0(≤50)	50	35
0M1-100H					0(≤50)	85	50	1000	7000
0M1-225L	100,125 160,180 200,225				≤50	35	22
0M1-225M					≤50	50	35
0M1-225H					≤50	85
