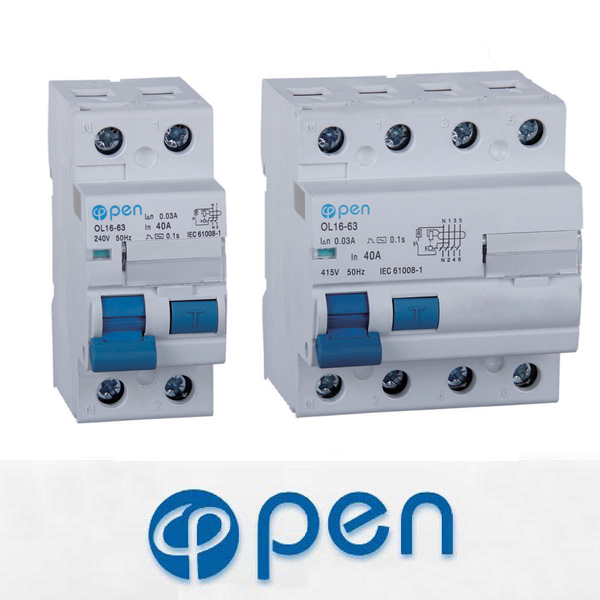

OL16-63 RCCB

OL16-63 RCCB
catalogue download Catalogue Download
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger Live Messenger
skype me Skype Me
e-mail us sales@opengroup.cc
Add to Basket Inquiry Basket



Summarize

OL16-63 Residual Current Circuit Breaker provide the function of isolation switching and earth leakage protection of electrical circuits.And also provide the indirect protection of the operator's body against the dangerous effects of electric current and provide the protection of the fire caused by the electrical circuit fault.
Standard
IEC61008

Construction features
1. Provides protection against earth fault/leakage current and function of isolation.
2. high short-circuit current withstand capacity
3. Applicable to terminal and pin/fork type busbar connection
4. Equipped with finger protected connection terminals
5. Fire resistant plastic parts endures abnormal heating and strong impact
6. Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity.
7. Independent of power supply and line voltage, and free from external interference, voltage fluctuation.
8. High current rating up to 100A.

Order note
1.Minimum order quantity, time during the order to delivery;
2.Need to indicate type , specification , rated current , number of poles, quantity of the products while ordering

Product's advantage
1.Our products have the guarantee period of 36 calendar months,that is a high quality and reliability;
2.our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
3.The fast and flexible production form aim at the customer require;
4.The deliveries exactly in accordance with customer orders
5.The fast transportation.
6.Adopt electromagnetic style release , can play a leak electricity and electric shock protecting role while breaking in zero Line.

Normal operation and mounting requirement
·Circumstance temperature -5°C ~ +40°C, average temperature not exceeding 35°C.
·Altitude above sea level less than 2000 m.
·Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
·Installation class II or III.
·Pollution class 2.
·Installation method DIN Rail mounting type.
·The external magnetism shall not be more than 5 times of terrestrial one.
·Product shall be installed vertically at the place where there shall be no severe impact and vibration. The product is switched on when the handle is at upper position.


Main technical parameters


Type
OL16-63
Number of poles
2P、4P
Rated Current(In)
25、40、63A
Rated residual operating current( I△n)
30、100、300、500mA
Rated residual non-operation Current( I△no)
0.5I△n
Rated Voltage(Un)
AC 230(240)/400(415)V
Residual operating current scope
0.5I△n~I△n
Residual current off-time
≤0.3s
Type
A、AC
Rated conditional short-circuit current Inc
6000A
Endurance
≥4000
Terminal protection
IP20

 Overall and mounting dimensioned chart
