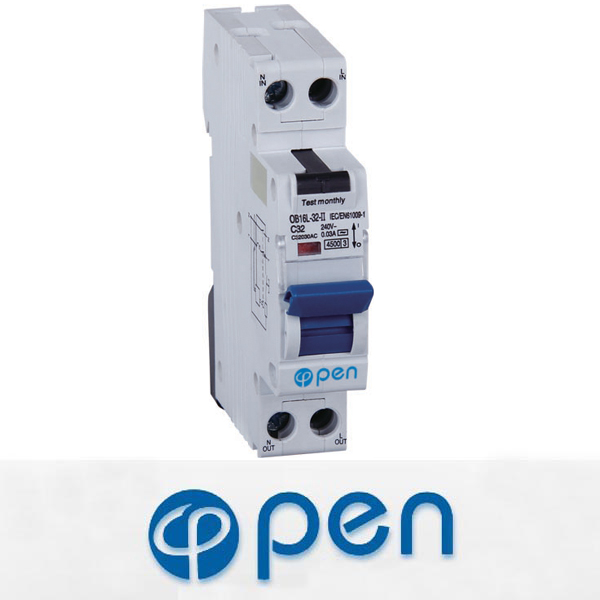

OB16L-32 II

OB16L-32 II
catalogue download Catalogue Download
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger Live Messenger
skype me Skype Me
e-mail us sales@opengroup.cc
Add to Basket Inquiry Basket




Summarize

·Elegant appearance; cover and handle in arc shape make comfortable operation.
·Contact position indicating window
·Transparent cover designed to carry label.
·In case of overload to protected circuit, RCBO handle trips and stays at central position, which enables a quick solution to the faulty line. The handle cannot stay in such position when operated manually.
·MCB handle can be locked either at “ON” position or at“OFF” position to prevent unwanted operation of the product.
·Provides protection against earth fault/leakage current, short-circuit and overload
·High short-circuit capacity
·Provides complementary protection against direct contact by human body.
·Effectively protects electric equipment against insulating failure
·Contact position indication
·Provides protection against over-voltage

Order note
1.Minimum order quantity, time during the order to delivery;
2.Need to indicate type , specification , rated current , number of poles, quantity of the products while ordering.

Product's advantage
1.Our products have the guarantee period of 36 calendar months,that is a high quality and reliability;
2.our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
3.The fast and flexible production form aim at the customer require;
4.The deliveries exactly in accordance with customer orders
5.The fast transportation.
6.Wide in variety, entire in specifications, has high short-circuit breaking capacity,can reach 10KA , it is aesthetic in appearance to design and convenient to install.

Normal operation and mounting requirement
·Circumstance temperature -5°C~ +40°C , average temperature not exceeding 35°C.
·Altitude above sea level less than 2000 m.
·Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
·Installation class II or III.
·Pollution class 2.
·Installation method DIN Rail mounting type.
·The external magnetism shall not be more than 5 times of terrestrial one.
·Product shall be installed vertically at the place where there shall be no severe impact and vibration. The product is switched on when the handle is at upper position.

Main technical parameters
·Residual current characteristics: AC
·Pole No.: 1P+N
·Tripping curve: B, C
·Rated short-circuit capacity: 6000A
·Rated current (A): 6, 10, 16, 20, 25, 32
·Rated voltage: 230V
·Rated frequency: 50Hz
·Rated residual operating current(A): 0.03
·Tripping duration: instantaneous≤0.1s
·Electro-mechanical endurance: 3000 cycles

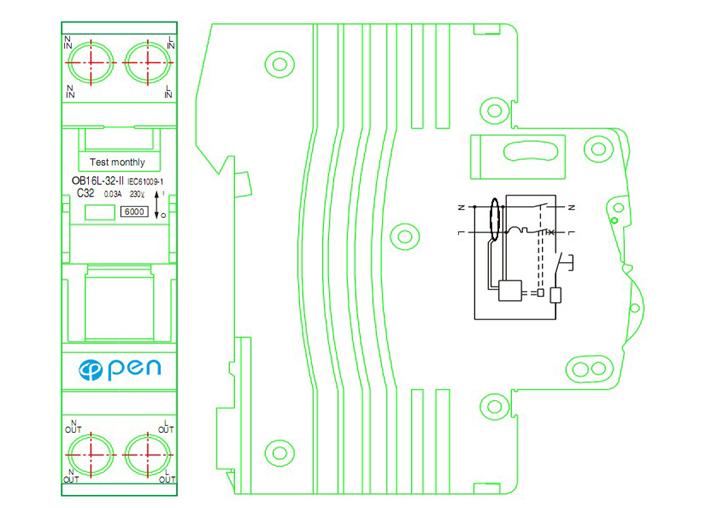

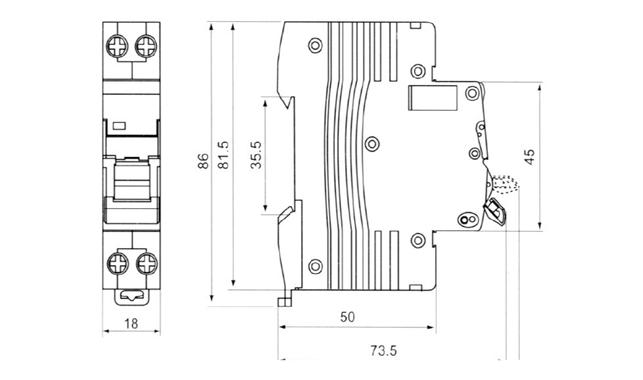

Overall and mounting dimensioned chart
