Summarize

Application scope
The Modular Signal Lamp is applicable to circuit with rated voltage 230V~ and frequency 50/60Hz for visual indication and signaling.
Standard
JB/T 3908-1999

Construction features

1. Low service duration, minimum power consumption
2. Compact design in modular size
3. Easy installation

Order note

1.Minimum order quantity, time during the order to delivery;
2.Need to indicate type , specification , rated current , number of poles, quantity of the products while ordering.

Product's advantage

1.Our products have the guarantee period of 36 calendar months,that is a high quality and reliability;
2.our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
3.The fast and flexible production form aim at the customer require;
4.The deliveries exactly in accordance with customer orders
5.The fast transportation.
6.Wide in variety, entire in specifications, has high short-circuit breaking capacity,can reach 4.5KA , it is aesthetic in appearance to design and convenient to install.

Normal operation and mounting requirement

·Circumstance temperature -5°C~ +40°C , average temperature not exceeding 35°C.
·Altitude above sea level less than 2000 m.
·Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
·Installation class II or III.
·Pollution class 2.
·Installation method DIN Rail mounting type.
·The external magnetism shall not be more than 5 times of terrestrial one.
·Product shall be installed vertically at the place where there shall be no severe impact and vibration. The product is switched on when the handle is at upper position.

Main technical parameters

Type	OA16
Rated voltage	230V AC
Rated frequency	50/60Hz
Colour	red, green, yellow
Connection terminal	pillar terminal with clamp
Connection capacity	rigid conductor 10mm2
Installation	On symmetrical DIN rail Panel mounting

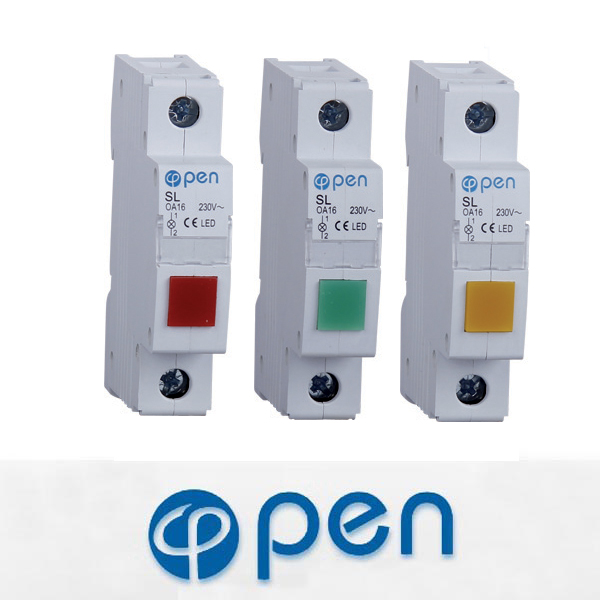

OA16 SL signal lamp
Max power	0.6W
Illumination	LED
Service duration	30,000 hours

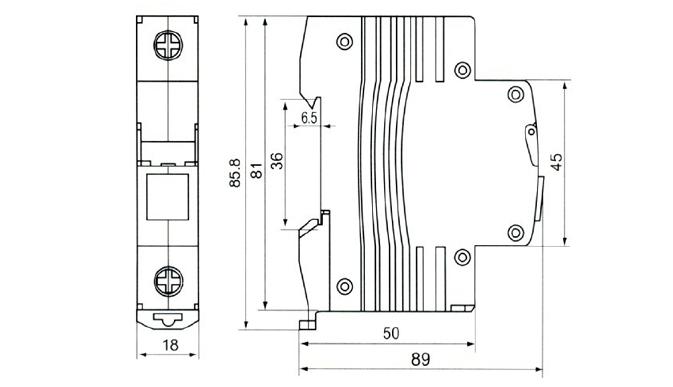

Overall and mounting dimensioned chart
