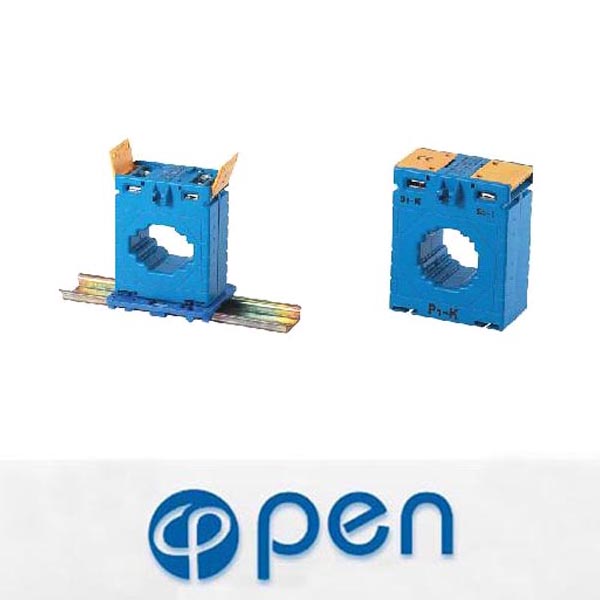

The MES series of current transformer have beautiful outline and Convenient for mounting in many ways. The most current transform need the special mounting and the MES series used the mounting of DIN typing With a lot of times. The protective cover for the terminal block used the switching device with Safety and quick.

MES guide rail type CT:

Primary current:
Secondary current:
Standard approval:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security coefficient:

5A-3000A
5A, 1A
VDE0414, BS7626, IEC44-1
0.72/3KV
50-60Hz
2.5VA, 5VA, 10VA, 15VA
0.5, 1.0
Ith=60 X Ih
FS<5

Model	A	B	C	D	E	F	G
MES-62/30	81	47	30	35	71	31	31
MES-62/40	81	47	30	35	71	41	41
MES-30	88	52	30	41	77	31	31
MES-40	88	52	30	41	77	41	41
MES-60	117	57	50	184	77	61	61
MES-100	115	53	86	38	74	101	101

Technical data & Specification:

Type

Rated current (A)

Rated power(AV)

Class:0.5

Class:1.0

MES-62/30

30/5
40/5
50/5
60/5
75/5
100/5

150/5
200/5

-
-
-
-
-
1.5

2
2.5

1
1
1
1.5
1.5
2.5

3
5

MES-62/40

60/5
75/5
100/5
150/5
200/5
250/5

300/5

-
-
1
1.5
2.5
3

1
1
2
2.5
5
5

7.5

MES-30

30/5
40/5
50/5
60/5
75/5
100/5

150/5
200/5

-
-
-
-
1.5
2.5

1
1
1.5
1.5
2.5
5

7.5

MES-40

100/5
150/5
200/5
250/5
300/5
400/5

500/5

1.5
2.5
5
5
10
10

2.5
5
5
5
15
15

MES-60

600/5
800/5
1000/5
1200/5

15
15
15
15

20
20
20
20

MES-100

1000/5
1200/5
1500/5
1600/5
2000/5
2500/5

3000/5

15
15
15
15
15
15

30
30
30
30
30
30
