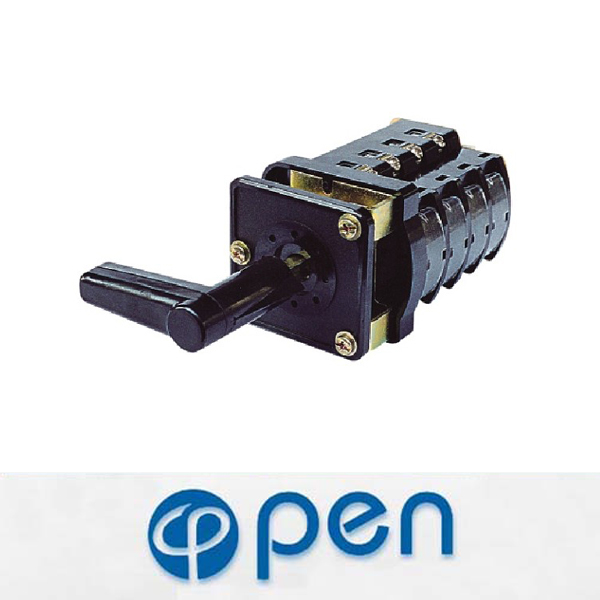

LW4

LW4

	Catalogue Download
	Print This Page
	Bookmark This Page

	Live Messenger
	Skype Me
	sales@opengroup.cc
Add to Basket Inquiry Basket

LW4 series changeover switch is used in the circuit of AC 50Hz,rated voltage 500V, DC voltage 440V, to transfer the control circuit and electric measuremen, aslo it can directly control small capacity motors.

Usage category
Usage category	Double breaks			Single break			Double breaks
Rated insulation voltage Ui (V)	110	220	500	220	380	500	380
Rated thermal current Lth(A)	20	14	10	10	7	5	16
Operating voltage Ue(V)	500
Operating current Ie(A)	20
Mechanical life(times)	10×10⁴
Electric life(cycles)	50×10⁴
