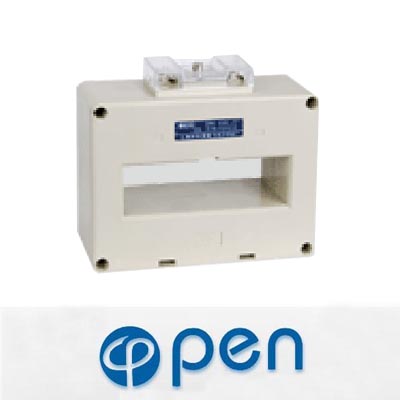

LMK2-0.66/SDH-0.66 Current Transformers

Products

Electrical Distribution (178)

- MCB (12)
- RCCB RCBO (12)
- MCCB (10)
- ACB (2)
- Fuse (31)
- Switch (16)
- Surge protective device (9)
- Weatherproof switch (5)
- Distribution box (53)
- Automatic transfer switch (8)
- 16 series (20)

Industrial Control (517)

Power Management (534)

- Voltage stabilizers/regulators (16)
- Controllers (12)
- Capacitor (73)
- Transformers (28)
- Power transformers (13)
- Motor soft start,inverters (5)
- Energy meter (246)
- UPS (19)
- Industrial plugs and sockets (84)
- Power System Test Equipment (8)
- Inverter (9)
- Solar Power/Battery (9)
- Control Protective Switching Device (12)

Search Catalog

You are here: Home >> Products >> Transformers >> LMK2-0.66/SDH-0.66 Current Transformers

	Catalogue Download
	Print This Page
	Bookmark This Page

	Live Messenger
	Skype Me
	sales@opengroup.cc
Add to Basket Inquiry Basket

Primary current: 100A-5000A
Secondary approval: 5A, 1A
Standard current: BS7626, IEC44-1
Maximum voltage: 0.72KV
Frequency: 50-60Hz
Rated load: 2.5VA-60VA
Class: 0.5, 1.0, 3.0
Short-time thermal current: Ith=100 Ih
Rated security coefficient: FS<5
High fire retardancy and security
Wide range of sizes to accommodate all the existing installations

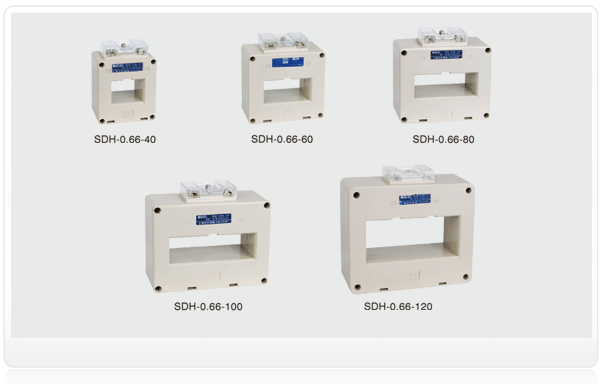

Model	Rated current(A) Primary/secondary
SDH-0.66-40	100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5A
SDH-0.66-60	300/5, 400/5, 500/5, 600/5, 750/5, 800/5, 1000/5, 1200/5A
SDH-0.66-80	500/5, 600/5, 750/5, 800/5, 1000/5, 1200/5, 1500/5, 1600/5A
SDH-0.66-100	600/5, 750/5, 800/5, 1000/5, 1200/5, 1500/5, 1600/5, 2000/5, 2500/5, 3000/5A
SDH-0.66-120	1000/5, 1200/5, 1500/5, 1600/5, 2000/5, 2500/5, 3000/5, 4000/5, 5000/5A

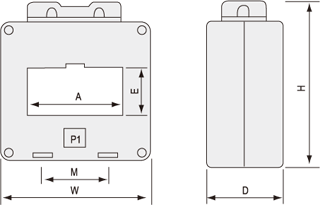

Model	Size		Window siz			Installation size
Model	W	H	D	A	E	M
SDH-0.66-40	75	105	45	42	32	45
SDH-0.66-60	98	116	45	62	32	42
SDH-0.66-80	118	120	45	82	32	60
SDH-0.66-100	140	130	49	102	32	80
SDH-0.66-120	165	152	49	122	53	80
