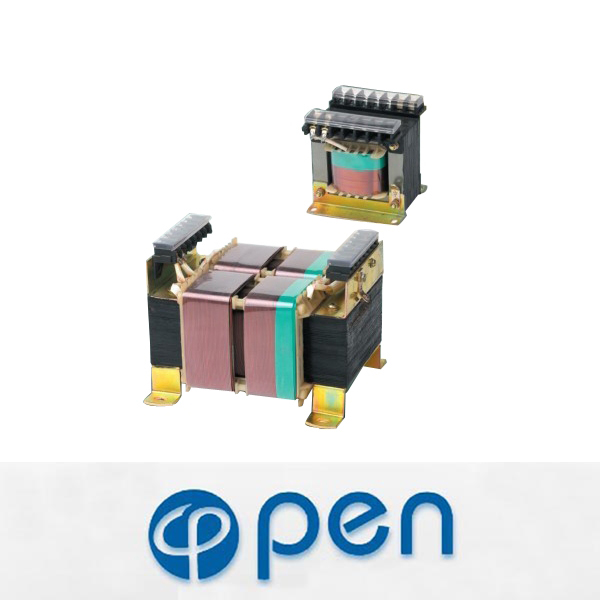

JBK3 machine control transformer
Use products
It is suitable for AC circuit of 50-60hz,output rated voltae less than 220V,inputrated voltage less than 500V,worked as control power supply for mechanical equipment and general electrical appliance and as power supply for work lighting and signal lamp.
Model and dimensions

Model (VA)	Rated input voltage(V)	Rated output voltage(V)	Dimension L×W×H(mm)	Installation size L×W(mm)
40	220±5% 380±5%	6 24 110 127 220	80×75×88	55×50
63			80×75×88	55×50
100			90×82×92	65×64
160			95×95×106	83×71
250			106×97×106	85×82
400			120×114×125	95×85
630			150×106×145	112×86
1000			205×155×155	155×125
1600			220×180×150	185×157
