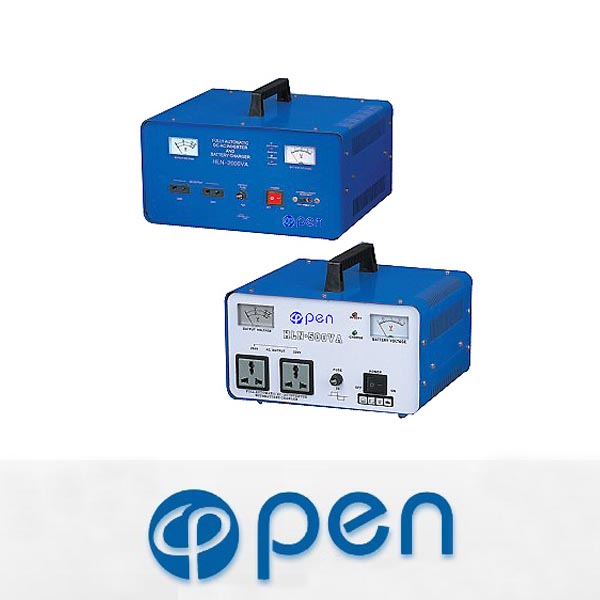

HLN full-auto inverted power source
General
HLN full-auto inverted power source adopting pulse width modulation integrated circuit and imported big power pushing module,The inverted power source offers the featured of quick strain,anti-interference,anti-thun derstruck,steady output voltage frequency,good adaptability and practical ,which can help you to get rid of the trouble of the power failure.
Charging current:determined by the battery capacity,Usually is 10% of the battery capacity.For example,the charging current of 100Am battery is 10A.
Application
It is suitable to provide electicity to domestic appliance,computer,store,wind/solar generator and these areas where often has power interruption.
Technical Index
|
Rated Power |
HLN-200VA/300VA/500VA/800VA/1000VA/15000VA/2000VA/3000VA/4000VA/5000VA |
|
DC input voltage |
12V,24V,36V,48V,60V,72V |
|
Output voltage |
110V±10% or 220V±10% |
|
Output frequency |
50HZ or 60HZ Corrective sine wave(PWM sqare wave) |
|
Charge input voltage |
220V or 110V |
|
Invert frequency |
≥80% |
|
Under-voltage protection |
DC 9.0-10.0V/DC12V |
|
Over-voltage protection |
DC 14.5-15.0V/DC12V |
|
Under-voltage protection and over-voltage protection of battery with other specifications are multiplied according to 12V |
|
|
Note:Above each reference points special for normal lead acidbattery. |
|
