HLC-1PQ04GG

HLC-1PQ04GG
catalogue download Catalogue Download
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger Live Messenger
skype me Skype Me
e-mail us sales@opengroup.cc
Add to Basket Inquiry Basket

Product Explanation

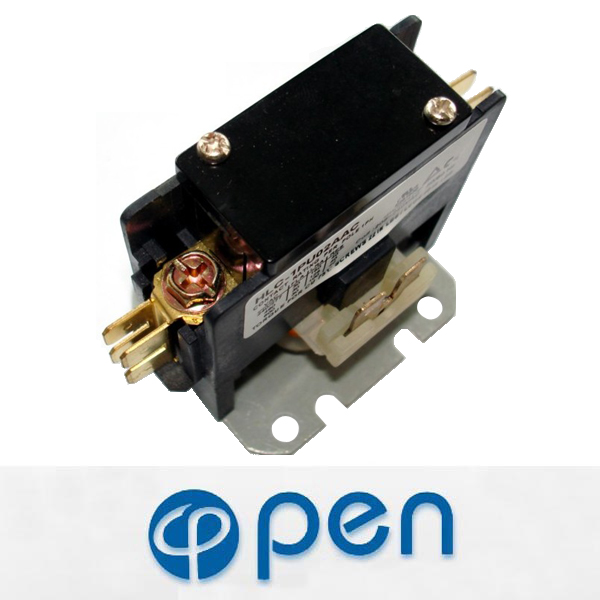

HLC-1PQ04GG(1P/40A/24VAC) Definite Purpose Contactors  (1-pole ,40A ) are ideal forHVAC air conditioning, refrigeration, heating, data processing, welding, elevators, hoists & cranes, lighting, pools & spas and food service equipment.



Place of Origin
Zhejiang, China (Mainland)
Brand Name
OPEN
Model Number
HLC-1PQ04GG(1P/40A/24VAC)
Electricity Type
AC
Number of Pole
1
Phase
1
Main Circuit Rating Voltage
240/277/480/600VAC
Main Circuit Rating Current
40/50A
Certification
ISO9001,CCC,CE,ROHS,UL,CUL


Product Feature
Detailed Product Description
Unique amortization system to eliminate contact bounce
Low cost
Accessories modification quickly and easily without using tools
Various kinds of terminals for customers' special requirements
Easy to change the coil
General amounting size, easy for replacement
Can be combined with a thermal overload relay to form an electromagnet starter to protect the line in which overload operation may occur
Double E magnet assembly providing optimal performance with reduced power consumption
Effective dustproof cover available
Silver Cadmium Oxide contacts provide long electrical endurance.
Class F high temperature insulated coils are standard.



OTHER SPECIFCATIONS
20-35 FLA
40 FLA
Line and Load Terminals
#10-32Screw*
BoxLugs*
Wire Size Awg Min-Max
16-8*
14-4Cu/Al
Tightening Torque(recommended)
25in.Ibs
40 in.Ibs
Coil Termination
Dual.250 QC(2)
Dual.250 QC(2)
Quick Connects.250 std.-1 or 11-2 Pole
Quad
Quad
Quick Connects.250 std.-2 Pole
Dual or Quad
Dual or Quad
Covers
Optional
Standard
Insulation System
130 Class B
130 Class B
*stranding must be split for #8 wire*Permissible Ambient Temperature: -40/65 -40F/150F


COIL TECHNICAL DATA 50/60hz
1POLE CONTACTORS
2POLE CONTACTORS
Nominal Coil Voltage
24
120
208/240
277
24
120
208/240
277
Maximum Pickup Volts
18
88
177
221
18
88
177
221
Drop-Out Volts Range
6-15
20-70
40-140
50-165
6-15
20-70
40-140
50-160
Nominal Inrush VA@50Hz
31
31
35
31
22
22
22
22
Nominal Inrush VA@60Hz
28
28
32
28
20
20
20
20
Nominal Sealed VA@50Hz
6
6
7
6
5.5
5.5
5.5
5.5
Nominal Sealed VA@60Hz
5
5
6
5
4.5
4.5
4.5
4.5
Nominal DC Resistance-Ohms
17.5
450
1800
2252
13
275
1056
1772
