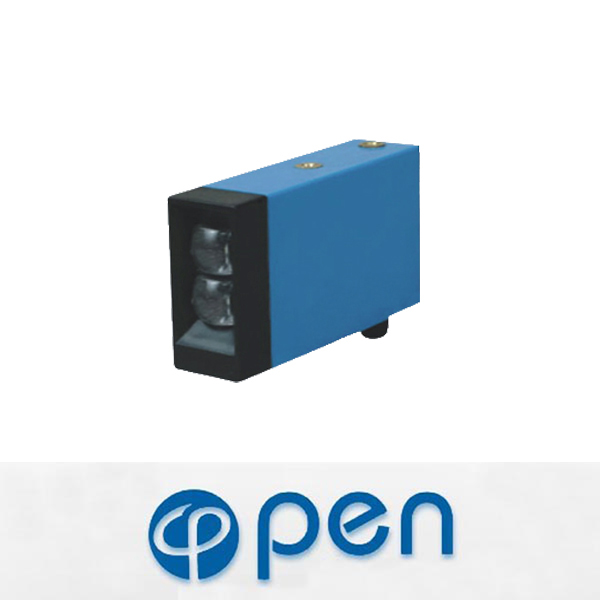

G54 Photoelectric switch:
| Structural category | Photoelectric switch | |||
| outward appearance code | G54 | |||
| Diffuse type | detection distance | 20cm | ||
| DC 10~30V | NPN | NO | G54-3A20NA | |
| NC | G54-3A20NB | |||
| NO+NC | G54-3A20NC | |||
| PNP | NO | G54-3A20PA | ||
| NC | G54-3A20PB | |||
| NO+NC | G54-3A20PC | |||
| AC 90~250V | Controllable silicon | NO | ||
| NC | ||||
| relay output | ||||
| Retroreflictive | detection distance | 2m | ||
| DC 10~30V | NPN | NO | G54-3B2NA | |
| NC | G54-3B2NB | |||
| NO+NC | G54-3B2NC | |||
| PNP | NO | G54-3B2PA | ||
| NC | G54-3B2PB | |||
| NO+NC | G54-3B2PC | |||
| AC 90~250V | Controllable silicon | NO | ||
| NC | ||||
| relay output | ||||
| Trough beam | detection distance | 5m | ||
| DC 10~30V | NPN | NO | G54-3C5NA | |
| NC | G54-3C5NB | |||
| NO+NC | G54-3C5NC | |||
| PNP | NO | G54-3C5PA | ||
| NC | G54-3C5PB | |||
| NO+NC | G54-3C5PC | |||
| AC 90~250V | Controllable silicon | NO | ||
| NC | ||||
| relay output | ||||
| Control output | DC:200mA AC:300mA relay:2A | |||
| Consumptio current | DC15mA AC10mA | |||
| Response time | DC2ms AC20ms | |||
| Directional angel | 30 -100 | |||
| Detected object | transparent or opaque body | |||
| Working environment temp. | -25~+55 | |||
| Intensity of illumination Working environment | Sunlight under 10000LX incadescent lamp under 3000LX | |||
| Shell material | Plastic | |||
| Protection grade | IP54 | |||
