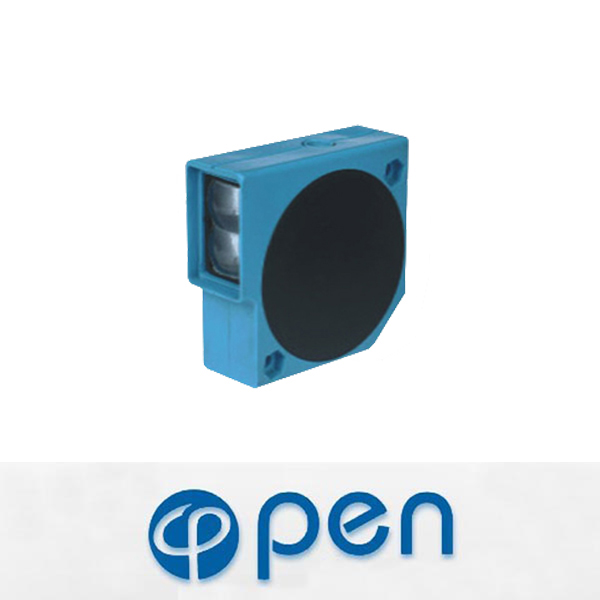

G24 Photoelectric switch:

Structural category				Photoelectric switch
outward appearance code				G24
Diffuse type	detection distance			50cm
	DC 10~30V	NPN	NO	G24-3A50NA
			NC	G24-3A50NB
			NO+NC	G24-3A50NC
		PNP	NO	G24-3A50PA
			NC	G24-3A50PB
			NO+NC	G24-3A50PC
	AC 90~250V	Controllable silicon	NO	G24-2A50LA
			NC	G24-2A50LB
		relay output		G24-2A50JC
Retroreflictive	detection distance			4m
	DC 10~30V	NPN	NO	G24-3B4NA
			NC	G24-3B4NB
			NO+NC	G24-3B4NC
		PNP	NO	G24-3B4PA
			NC	G24-3B4PB
			NO+NC	G24-3B4PC
	AC 90~250V	Controllable silicon	NO	G24-2B4PA
			NC	G24-2B4PB
		relay output		G24-2B4JC
Trough beam	detection distance			5m
	DC 10~30V	NPN	NO	G24-3 C5NA
			NC	G24-3 C5NB
			NO+NC	G24-3 C5NC
		PNP	NO	G24-3 C5PA
			NC	G24-3 C5PB
			NO+NC	G24-3 C5PC
	AC 90~250V	Controllable silicon	NO	G24-2 C5PA
			NC	G24-2 C5PB
		relay output		G24-2 C5JC
Control output				DC:200mA AC:300mA
Consumptio current				DC15mA AC10mA
Response time				DC2ms AC20ms
Directional angel				30 -100
Detected object				transparent or opaque body
Working environment temp.				-25~+55
Intensity of illumination Working environment				Sunlight under 10000LX incadescent lamp under 3000LX
Shell material				Metal
Protection grade				IP54
