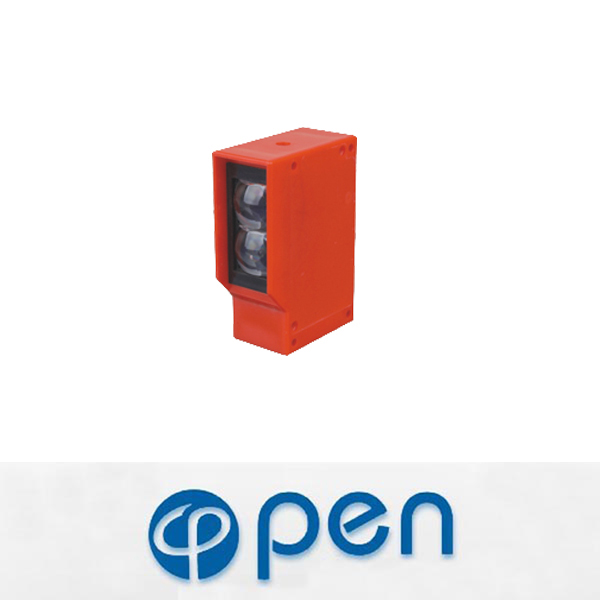

G139 Photoelectric switch:
| Structural category | Photoelectric switch | |||
| outward appearance code | G139 | |||
| Diffuse type | detection distance | 1m | ||
| DC 10~30V | NPN | NO | G139-3A1NA | |
| NC | G139-3A1NB | |||
| NO+NC | G139-3A1NC | |||
| PNP | NO | G139-3A1PA | ||
| NC | G139-3A1PB | |||
| NO+NC | G139-3A1PC | |||
| AC 90~250V | Controllable silicon | NO | G139-2A1LA | |
| NC | ||||
| relay output | G139-2A1JC | |||
| Retroreflictive | detection distance | 5m | ||
| DC 10~30V | NPN | NO | G139-3B5NA | |
| NC | G139-3B5NB | |||
| NO+NC | G139-3B5NC | |||
| PNP | NO | G139-3B5PA | ||
| NC | G139-3B5PB | |||
| NO+NC | G139-3B5PC | |||
| AC 90~250V | Controllable silicon | NO | G139-2B5LA | |
| NC | ||||
| relay output | G139-2B5JC | |||
| Trough beam | detection distance | 10m | ||
| DC 10~30V | NPN | NO | G139-3C101NA | |
| NC | G139-3C101NB | |||
| NO+NC | G139-3C101NC | |||
| PNP | NO | G139-3C101PA | ||
| NC | G139-3C101PB | |||
| NO+NC | G139-3C101PC | |||
| AC 90~250V | Controllable silicon | NO | G139-2C101LA | |
| NC | ||||
| relay output | G139-2C101JC | |||
| Control output | DC:200mA AC:300mA relay:2A | |||
| Consumptio current | DC15mA AC10mA | |||
| Response time | DC2ms AC20ms | |||
| Directional angel | 30 -100 | |||
| Detected object | transparent or opaque body | |||
| Working environment temp. | -25~+55 | |||
| Intensity of illumination Working environment | Sunlight under 10000LX incadescent lamp under 3000LX | |||
| Shell material | Metal G39 | |||
| Protection grade | IP54 | |||
