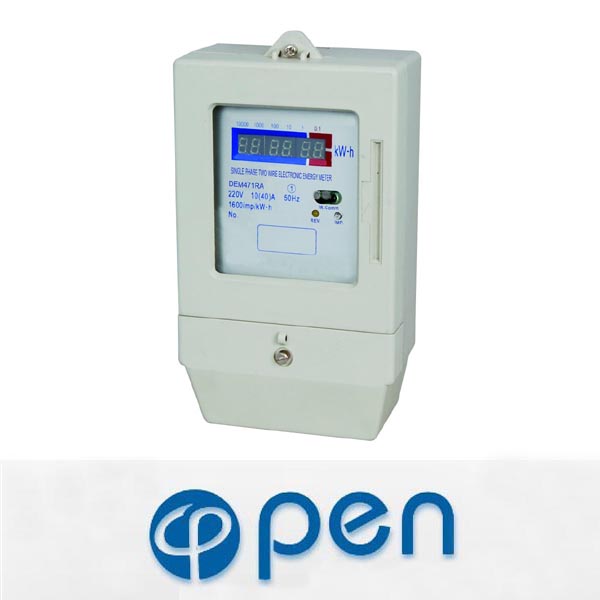

DEM471RA

SINGLE PHASE ELECTRONIC  MULTI-RATE PREPAYMENT FRONT BOARD INSTALLED ACTIVE ENERGY METER





Application

Model DEM471RA single phase electronic multi-rate prepayment front board installed active energy meter is a kind of single phase two wire active energy meter which purchase electricity by IC card, electric energy measuring, ladder rate, load control and using electricity management. The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is use for setting indoor or out door meter box. This meter has LED display shows power. And there is far infrared communication module in it, can read the meter and set the system parameters conveniently. It has following features: good reliability, light weight, specious nice appearance, convenient installation, etc.





Functions and features

Standard configuration one meter one card, can repeat input money from PC machinery which with IC programmer.
There a clock which is implement ladder rate, and there is far infrared communication module in it, use for checking the clock, readingthe meter and setting the system parameters.
It has IC card with code and data against false, standard configuration use storage IC card, may select logic encryption card (ProductConfiguration code is RE) or non-contact RF card. (Product Configuration code is RI)
Standard configuration payment by kWh, may select payment by money. (Please specified when ordering).
Standard configuration of the prepayment management system use of single version, may select network version. (Please specifiedwhen ordering).
It has load control and function of automatic fault detection and instructions, with function of open terminals cover and detection andopen terminals cover and cut power.
6 LED digits display, 5+1 digits display (99999.1kWh), may select 7 LED digits display. (Product Configuration code is SA).
A port of pulse output passive closed (polarity), complying with standard IEC 62053-31 and standard DIN 43864.
Two LED instructions signal of power impulse (red) and direction of the flow of load current (yellow).
Automatic detection the direction of the flow of load current. When the yellow LED display, that is meaning the direction of the flowof load current reverse
Single direction single component measurement single phase two wire active energy consumption. It is nothing with direction of theflow of load current. Complying with standard IEC 62053-21.
Direct connect operation, there are two types you may select. Standard configuration type 1B wiring, may select type 1A wiring(Product Configuration code is RB).
Front board three fixed installation, standard configuration extension terminals cover, in order to protect to use safety, may selectshort terminals cover. (Product Configuration code is RC).





Technical parameters

 Model

Accuracy

Reference
voltage (V)

Current
specifications (A)

Starting
current (A)

Insulation
performance

 DEM471RA

Class 1

127
230

5(30)
10(60)
20(100)

0.02
0.04
0.08

AC voltage 4kV for 1 minute,
1.2/50us waveform
impulse voltage 6kV

*If you need different reference voltage or current specification, please advisory our sales.

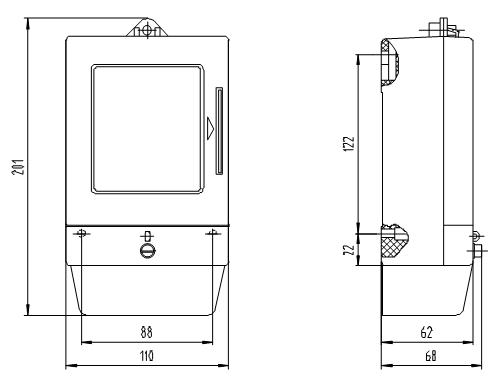

Outer and mount dimension

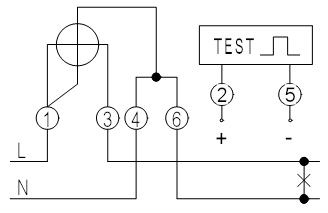

Wiring diagram (Type 1B)

Terminal

 Note

1 Inlet phase line
3 Outgoing phase line
4 Inlet neutral line
6 Outgoing neutral line
2 and 5 Port of pulse output passive closed
