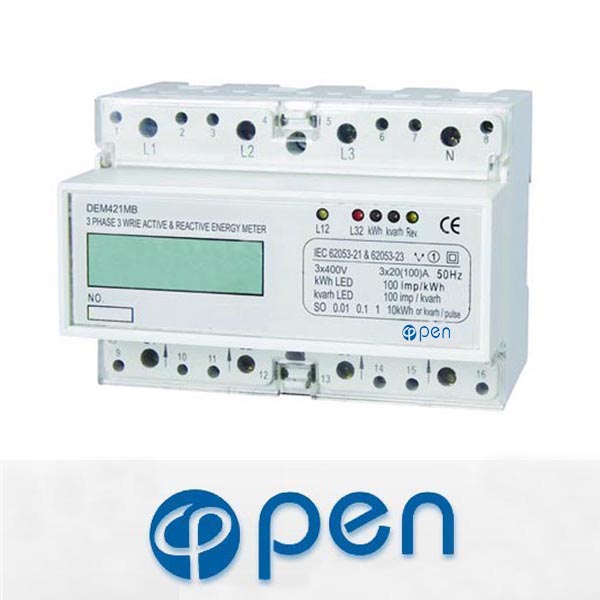

DEM421MB

THREE PHASE FOUR WIRE ELECTRONIC DIN-RAIL ACTIVE AND REACTIVE INTEGRATION ENERGY METER


Application

Model DEM421MB three phase three wire electronic DIN rail active and reactive integration energy meter is a kind of new style three phase three wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21 and class 2 three phase reactive energy meter stipulated in international standard IEC 62053-23. It can accurate and directly measure 50Hz or 60Hz active and reactive energy consumption from three phase three wire AC electricity net, it can display total energy consumption by step motor type impulse register. This meter has seven digits LCD displays shows active energy. And there is a maintenance-free lithium battery in it, use for displaying power cup reading. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc. This meter has already got the patent certificate from China State Intellectual Property Office at present. Patent certificate NO. ZL 2006 3 0107349.1, any other country patent certificate are in assessing.



Functions and features
35mm standard DIN rail installation, complying with standard DIN EN50022. Or front board installed (mounting holes center distance 63 mm), users can choose any one by themselves.
Ten pole width (Modulus 12.5mm), complying with standard JB/T7121-1993.
7 digits LCD display, 6+1 digits(999999. 1kWh), May select 5+2 digits display. (Please specified when ordering)
There is a maintenance-free lithium battery in it, use for s displaying power cup reading.
Standard configuration one port of active pulse output passive and one port of reactive pulse output passive(polarity). The output rate are 0.01, 0.1, 1, 10kWh or kvarh/Pulse. Users can choose any one by themselves. May select one port of active pulse output passive and one port of reactive pulse output passive (nonpolarity). And contact with all kind of AMR system conveniently, Complying with standard IEC 62053-31 and DIN 43864. (Please specified when ordering)
Four LED instructions power supply state (line voltage L12 & L32) and signal of active energy impulse and reactive energy impulse.
Automatic detection the direction of the flow of load current. And instructions by one LED.
Single direction two components measure three phase three wire active and reactive energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21and IEC 62053-23.
Standard configuration type S wiring (Inlet from top, outlet from bottom), directly connect operation, may select use CT (Product Configuration code is LB) and PT&CT (Product Configuration code is KB) for operation.
Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety. (Product Configuration code is ME).


Technical parameters

 Model

Accuracy

Reference
voltage (V)

Current
specifications (A)

Starting
current (A)

Insulation
performance

 DEM421MB

Class 1

3 x 220
3 x 400

5(30)
10(60)
20(100)

0.02
0.04
0.08

AC voltage 4kV for 1 minute,
1.2/50us waveform
impulse voltage 6kV

*If you need different reference voltage or current specification, please advisory our sales.

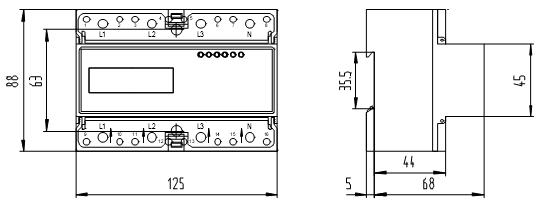

Outer and mount dimension

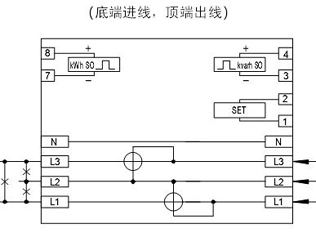

Wiring diagram (Type S)

Terminal

 Note

L1 L1 phase line
L2 L2 phase line
L3 L3 phase line
N Don't use
7 and 8 Port of active pulse output passive
3 and 4 Port of reactive pulse output passive
1 and 2 Port of stet SO  pulse rate
