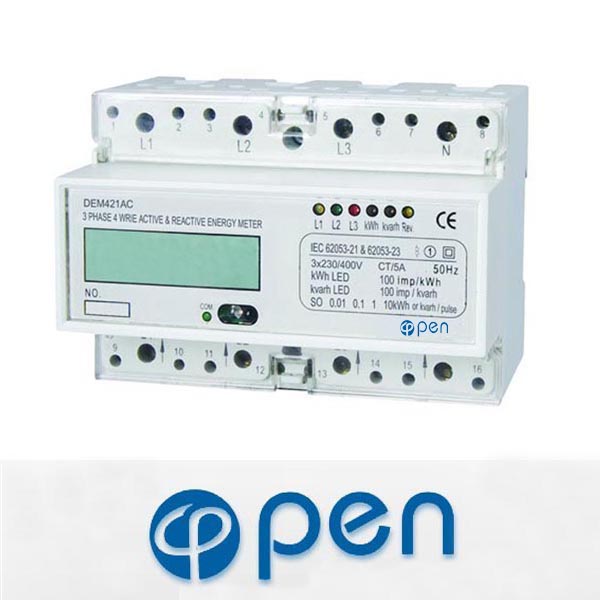

Model DEM421AC three phase four wire electronic DIN rail active and reactive integration energy meter is a kind of
new style three phase four wire active and reactive energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21 and class 2 three phase reactive energy meter stipulated in international standard IEC 62053-23. It can accurate and directly measure 50Hz or 60Hz active and reactive energy consumption from three phase four wire AC electricity net, it can display total energy consumption by step motor type impulse register. This meter has seven digits LCD displays shows active energy. And there are far infrared and RS485 communication module in it. Contact with all kind of AMR system conveniently. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc. This meter has already got the patent certificate from China State Intellectual Property Office at present. Patent certificate NO. ZL 2006 3 0107349.1, any other country patent certificate are in assessing.
|
|

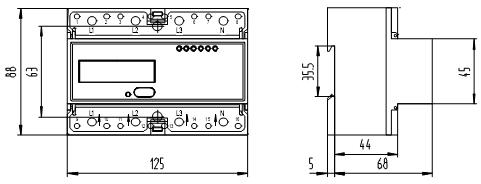

● 35mm standard DIN rail installation, complying with standard DIN EN50022. Or front board installed (mounting
holes center distance 63 mm), users can choose any one by themselves.
● Ten pole width (Modulus 12.5mm), complying with standard JB/T7121-1993.

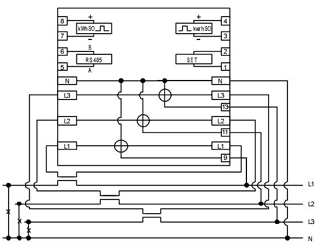

● Type S wiring (Inlet from bottom, outlet from top), use CT connect operation, may select 27 CT ratio, the meter will read directly after set, and needn’t multiplied by CT rate.
● 7 digits LCD display, 5+2 digits(99999.91kWh, Only when CT ratio 5:5A) or 7 digits display. It is choose by the CT ratio which is set.
● Standard configuration one port of active pulse output passive and one port of reactive pulse output passive(polarity), The output rate are 0.01, 0.1, 1, 10kWh or kvarh/Pulse. Users can choose any one by themselves. May select one port of active pulse output passive and one port of reactive pulse output passive (nonpolarity). And contact with all kind of AMR system conveniently, Complying with standard IEC 62053-31 and DIN 43864. (Please specified when ordering)
● Standard configuration there are far infrared and a port of RS485 communication data, communication agreement complying with standard DL/T645-1997. May select without function of communication data. (Product
Configuration code is NC)
● Six LED instructions power supply state and signal of active energy impulse and reactive energy impulse and data
communications state.
● Automatic detection the direction of the flow of load current. And instructions by one LED.
● Single direction three components measure three phase four wire active and reactive energy consumption. It is
nothing with direction of the flow of load current. Complying with standard IEC 62053-21and IEC 62053-23.
● Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use
safety. (Product Configuration code is AF).
|
