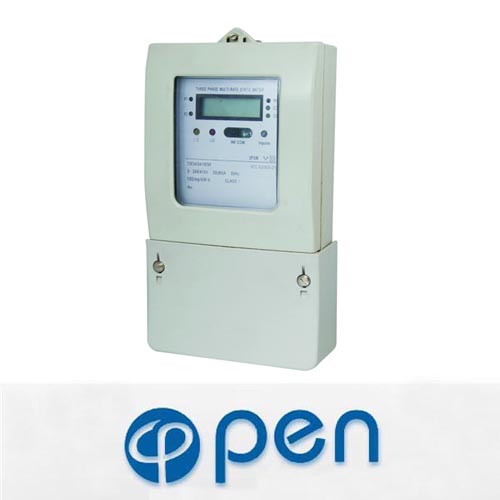

DEM341EM

THREE PHASE THREE WIRE ELECTRONIC MULTI-RATE FRONT BOARD INSTALLED ACTIVE ENERGY METER





Application

Model DEM341EM three phase three wire electronic multi-rate front board installed active energy meter is a kind of three phase three wire two tariffs (tariff conversion is controlled by timer outside or similar equipment) active energy meter, the meter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from three phase three wire AC electricity net, it is use for setting indoor or out door meter box. This meter has seven digits LCD displays shows various consumption data and information. And there are far infrared and RS485 communication module in it. It is use for setting and reading the meter. Contact with all kind of AMR system conveniently. It has following features: good reliability, light weight, specious nice appearance, convenient installation, etc.





Functions and features

Front board three fixed installation, up and down mounting holes center distance is 198-212 mm, users can choose any one by themselves.
Have two tariffs, and port of set the tariff, input control voltage 0-90 Vac, set up tariff F1, input control voltage 150-400 Vac, set up tariff F2, the tariff conversion is controlled by timer outside or similar equipment.
May select cycle display (default) or push the button itemized display, we can set the cycle display, it can display 6 data at most. Can select the data which displayed. The decimal median which displayed can choose set one or two.
Use memory that is not loss easy, the data can be kept forever after power cut off.
There are a polarity port of pulse output passive closed and a nonpolarity port of pulse output passive distant, the output rate is 10 or 100 imp/kWh (can select), Complying with standard IEC 62053-31 and DIN 43864.
There are far infrared and a port of RS485 communication data. It is use for setting and reading the meter, communication agreement complying with standard DL/T645-1997.
Eight LED instructions respectively power supply state, signal of energy impulse, the direction of the flow of load current, the state rates just now and the data communications state.
Single direction two components measure three phase three wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.
Standard configuration for direct connect operation, type 13B wiring, we can also choose another type of wiring, and use CT (Product Configuration code is EO) and PT & CT (Product Configuration code is EQ), type 5B wiring for operation.
Standard configuration extension terminals cover, in order to protect to use safety, may select short terminals cover. (Product Configuration code is EL).





Technical parameters

 Model

Accuracy

Reference
voltage (V)

Current
specifications (A)

Starting
current (A)

Insulation
performance

 DEM341EM

Class 1

3 X 127/ 220
3 X 230/ 400

5(30)
10(60)
20(100)

0.02
0.04
0.08

AC voltage 4kV for 1 minute,
1.2/50us waveform
impulse voltage 6kV

*If you need different reference voltage or current specification, please advisory our sales.

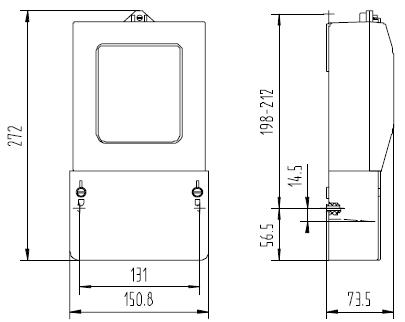

Outer and mount dimension

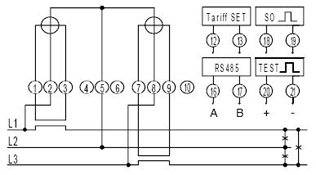

Wiring diagram (Type 13B)

Terminal

 Note

1 Inlet  L1 phase CT
3 Outgoing L1 phase  CT
4 Don't use
6 Don't use
7 Inlet  L3 phase  CT
9 Outgoing L3 phase  CT
2  L1 phase line
5  L2 phase line
8  L3 phase line
10 Don't use
12 and 13 Port of set the CT ratio
16 and 17 Port of RS485 data communication
18 and 19 Port of pulse output passive distant
20 and 21 Port of pulse output passive closed
