DEM331AO

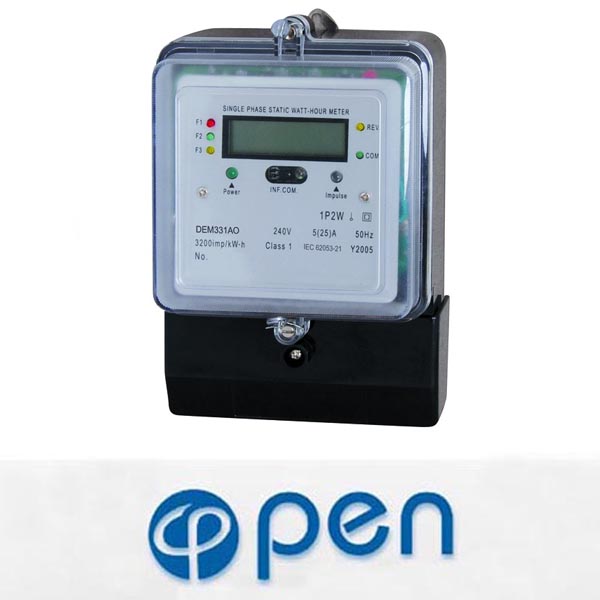

SINGLE PHASE ELECTRONIC MULTI-RATE FRONT BOARD INSTALLED ACTIVE ENERGY METER


Application

Model DEM331AO single phase electronic multi-rate front board installed active energy meter is a kind of single phase two wire three tariffs (time-sharing billing) active energy meter, the meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net. This meter has seven digits LCD displays shows various consumption data and information. And there are far infrared and RS485 communication module in it. It is use for setting and reading the meter. Contact with all kind of AMR system conveniently. It has following features: good reliability, light weight, specious nice appearance, convenient installation, etc.



Functions and features
Front board three fixed installation, the cover is made of PC material which is transparent and anti-UV molded overall, the bottomof the meter and the terminal are made of quality bakelite material which is moisture-resistant, fire-retardant, high temperaturemolded overall. It has following features: good weatherability, high rigid, good insulation performance, etc.
Have three tariffs, may select 12 daily period of times. You can set the date arbitrary which can automatic read the meter everymonth. May select single tariff function in weekend. (Please specified when ordering)
There are a clock and Maintenance-free backup lithium batteries in it. Battery capacity detection and display all the time. It cankeep the electricity data for 12 months. The data can be kept forever after power cut off.
May select cycle display (default) or push the button itemized display, it can display 14 data at most. Can select the data whichdisplayed. The decimal median which displayed can choose set one or two.
A port of pulse output passive (polarity), complying with standard IEC 62053-31.
There are far infrared and a port of RS485 communication data. It is use for setting and reading the meter. Set and operation havepassword protection, communication agreement complying with standard DL/T645-1997.
Seven LED instructions respectively power supply state, signal of energy impulse, the direction of the flow of load current, thestate rates just now and the data communications state.
Single direction measurement single phase two wire active energy consumption. It is nothing with direction of the flow of loadcurrent. Complying with standard IEC 62053-21.
Direct connect operation, there are two types wiring you may select. Standard configuration type 1A wiring, may select type 1Bwiring (Product Configuration code is AM).
Standard configuration extension terminals cover, in order to protect to use safety, may select short terminals cover. (ProductConfiguration code is AN).


Technical parameters

 Model

Accuracy

Reference
voltage (V)

Current
specifications (A)

Starting
current (A)

Insulation
performance

 DEM331AO

Class 1

127
230

5(30)
10(60)
20(100)

0.02
0.04
0.08

AC voltage 4kV for 1 minute,
1.2/50us waveform
impulse voltage 6kV

*If you need different reference voltage or current specification, please advisory our sales.


Outer and mount dimension

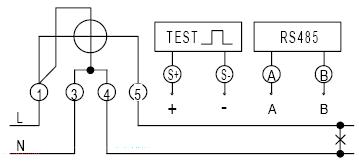

Wiring diagram (Type 1A)

Terminal

 Note

1 Inlet phase line
3 Inlet neutral line
4 Outgoing neutral line
5 Outgoing phase line
S+ and S- Port of pulse output passive
A and B Port of RS485 data communication
