DEM321DT

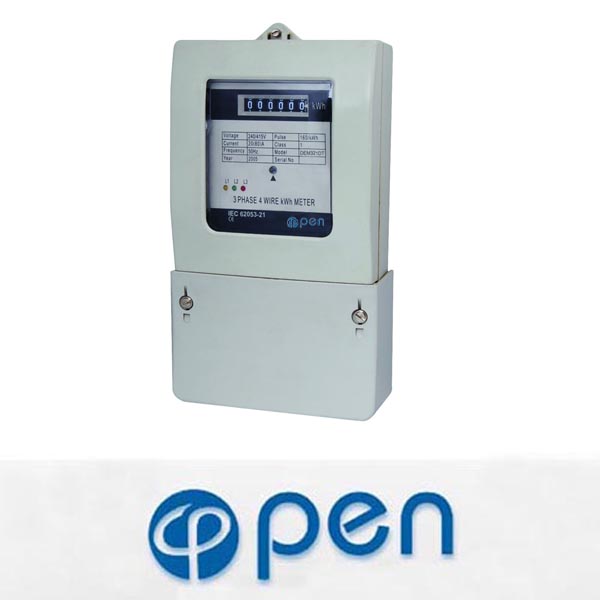

THREE PHASE FOUR WIRE ELECTRONIC FRONT BOARD INSTALLED ACTIVE ENERGY METER

Application

Model DEM321DT three phase four wire electronic front board installed active energy meter is a kind of new style three phase four wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 three phase active energy meter
stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net, it is use for setting indoor or out door, it can display total energy consumption by step motor type impulse register. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation,
etc.

Functions and features

Front board three fixed installation, up and down mounting holes center distance is 198-212 mm, users can choose any one by themselves.
6 digits display (999999KWh) by step motor type impulse register.
Standard configuration only a polarity port of pulse output passive , may select add a nonpolarity port of pulse output passive distant (Product Configuration code is DI). And contact with all kind of AMR system conveniently, Complying with standard IEC 62053-31 and DIN 43864.
Four LED instructions respectively power supply state and signal of energy impulse.
Standard configuration don’t detection direction of the flow of load current. May select automatic detection the direction of the flow of load current. And Instructions on individual LED. (Please specified when ordering)
Single direction three components measure three phase four wire active energy consumption. It is nothing with direction of the energy of load current. Complying with standard IEC 62053-21.
Standard configuration direct connect operation , type 16B wiring, we can also choose another type of wiring, and use 5+1 digits display by impulse register, CT (Product Configuration code is DV) and PT & CT (Product Configuration code is DX) for operation, it is type 48B wiring.
Standard configuration extension terminals cover, in order to protect to use safety, may select short terminals cover. (Product Configuration code is EI).

Technical parameters

Model	Accuracy	Reference voltage (V)	Current specifications (A)	Starting current (A)	Insulation performance
DEM321DT	Class 1	3X127/220 3X230/400	5(30) 10(60) 20(100)	0.02 0.04 0.08	AC voltage 4kV for 1 minute, 1.2/50us waveform impulse voltage 6kV

*If you need different reference voltage or current specification, please advisory our sales.

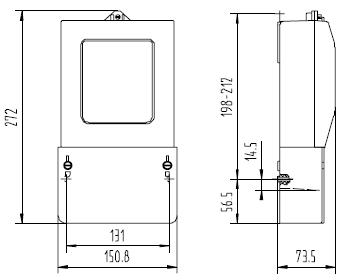

Outer and mount dimension

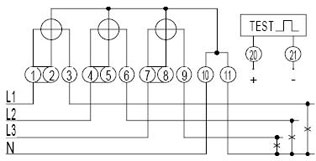

Wiring diagram (Type 16B)

Terminal	Note
1	Inlet L1 line
3	Outgoing L1 line
4	Inlet L2 line
6	Outgoing L2 line
7	Inlet L3 line
9	Outgoing L3 line
10	Inlet neutral line
11	Outgoing neutral line



20 and 21	Port of pulse output passive
