DEM312TL

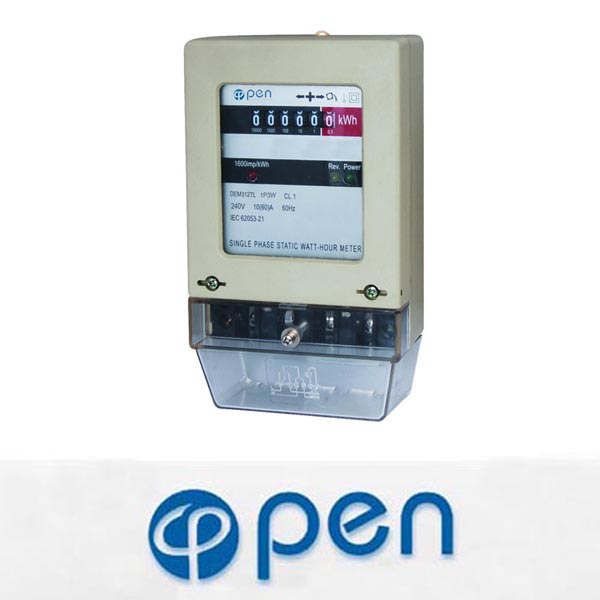

SINGLE PHASE ELECTRONIC FRONT BOARD INSTALLED ACTIVE ENERGY METER

Application

Model DEM312TL single phase three wire electronic front board installed active energy meter is a kind of new style single phase three wire active energy meter, and it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase three wire AC electricity net, it can display total energy consumption by step motor type impulse register. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.

Functions and features

Front board three fixed installation, up and down mounting holes center distance 130-147 mm, users can choose any one by themselves.
5+1 digits display (99999.1kWh) by step motor type impulse register.
Standard configuration one port of pulse output passive (polarity), May select increase a distant port of pulse output passive ( no polarity). And contact with all kind of AMR system conveniently, complying with standard IEC 62053-31 and DIN 43864.
Two LED instructions power supply state (green) and signal of energy impulse (red).
Automatic detection the direction of the flow of load current. And instructions by individual LED. (Only yellow energy impulse signal when working, that is meaning the direction of the flow of load current reverse).
Single direction single component measure single phase three wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.
Direct connect operation, type 2A wiring.
Standard configuration extension terminals cover, in order to protect to use safety, may select short terminals cover. (Product Configuration code is TK).

Technical parameters

Model	Accuracy	Reference voltage (V)	Current specifications (A)	Starting current (A)	Insulation performance
DEM312TL	Class 1	240	5(30) 10(60) 20(100)	0.02 0.04 0.08	AC voltage 4kV for 1 minute, 1.2/50us waveform impulse voltage 6kV

*If you need different reference voltage or current specification, please advisory our sales.

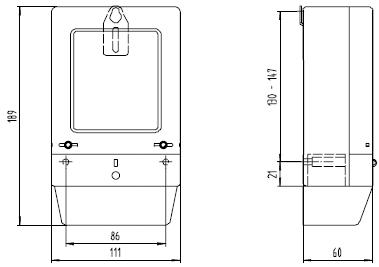

Outer and mount dimension

Wiring diagram (Type 2A)

Terminal	Note
1	L1 inlet phase line
3	L2 inlet phase line
4	L3 outgoing phase line
6	L1 outgoing phase line
2 and 5	Port of pulse output passive
