DEM091QF

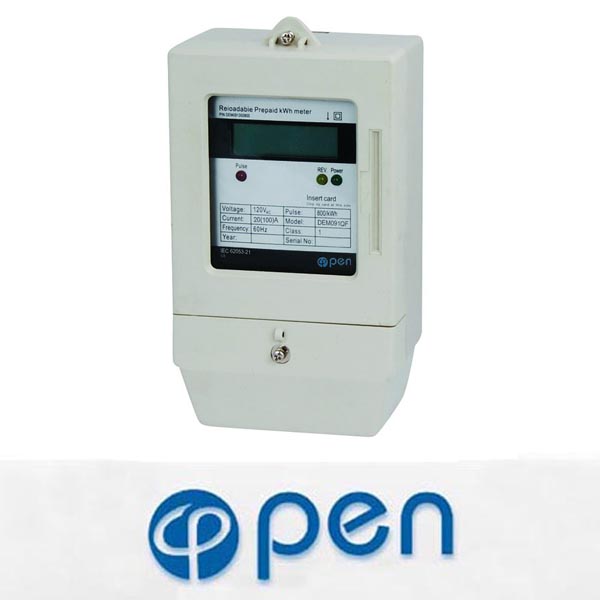

SINGLE PHASE ELECTRONIC FRONT BOARD INSTALLED ACTIVE ENERGY METER


Application

Model DEM091QF single phase electronic prepayment front board installed active energy meter is a kind of single phase two wire active energy meter which purchase electricity by IC card, electric energy measuring, load control and using electricity management. The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is use for setting indoor or out door meter box. This meter has LCD display shows power. It has following features: good reliability, light weight, specious nice appearance, convenient installation, etc.



Functions and features
It support repeat recharge and one-time recharge from IC programmer and PC machinery online at the same time. OR it can individual offline recharge. (Please specified when ordering).
The IC card use logic and encryption, with code and data against false
Standard configuration payment by kWh, may select payment by money. (Please specified when ordering).
Standard configuration of the prepayment management system use of single version, may select network version. (Please specified when ordering).
It has load control and function of automatic fault detection and instructions, standard configuration without function of open terminals cover and detection, may select open terminals cover and cut power. (Please specified when ordering).
Standard configuration 7 LCD digits display, 6+1 digits display (999999.1kWh), may select 5+1LED digits display. (Product Configuration code is PF).
A port of pulse output passive closed (polarity), complying with standard IEC 62053-31 and standard DIN 43864.
Three LED instructions power supply state (green), signal of energy impulse (red) and direction of the flow of load current (yellow).
Automatic detection the direction of the flow of load current. When the yellow LED display, that is meaning the direction of the flow of load current reverse.
Single direction single component measure single phase two wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.
Direct connect operation, there are two types wiring you may select. Standard configuration type 1A wiring, may select type 1B wiring (Product Configuration code is QE).
Front board three fixed installation, standard configuration extension terminals cover, in order to protect to use safety, may select short terminals cover. (Product Configuration code is QH).


Technical parameters

 Model

Accuracy

Reference
voltage (V)

Current
specifications (A)

Starting
current (A)

Insulation
performance

 DEM091QF

Class 1

127
230

5(30)
10(60)
20(100)

0.02
0.04
0.08

AC voltage 4kV for 1 minute,
1.2/50us waveform
impulse voltage 6kV

*If you need different reference voltage or current specification, please advisory our sales.

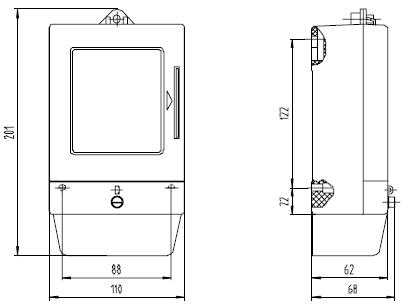

Outer and mount dimension


Wiring diagram (Type 1A)

Terminal

 Note

1 Inlet phase line
3 Inlet neutral line
4 Outgoing neutral line
6 Outgoing phase line
2 and 5 Port of pulse output passive closed
