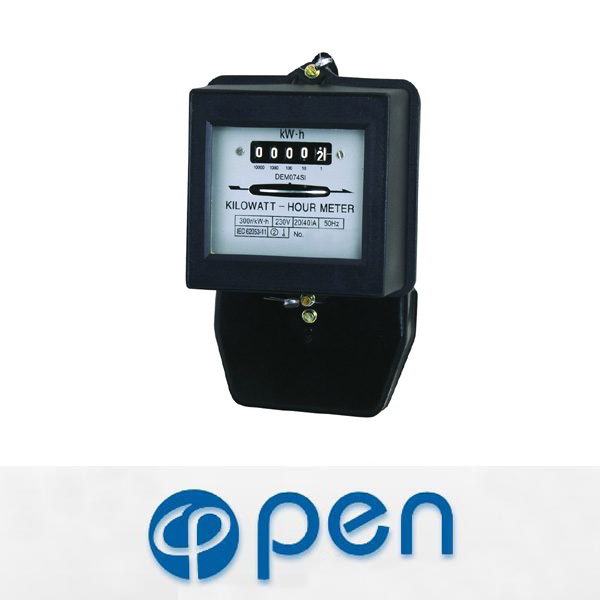

DEM074SI |
|||||||||||||
| SINGLE PHASE ELECTROMECHANICAL FRONT BOARD INSTALLED ACTIVE ENERGY METER | |||||||||||||
| Application | |||||||||||||
|
Model DEM074SI single phase electromechanical front board installed active energy meter is a kind of new style single phase two wire active energy meter, it is designed on the basis of original DD284 single phase electromechanical meter, and fully absorb new technologies about electromechanical meter from domestic and abroad. The meter completely accord with relevant technical requirements of class 2 single phase active energy meter stipulated in international standard IEC 62053-11. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is use for setting |
|||||||||||||
| Functions and features | |||||||||||||
| Front board two fixed installation, the cover is made ABS engineering plastics molded overall which is black , fire-retardant and has a transparent glass window, the bottom of the meter is made of quality steel which is after double-through antirust processing, and the terminal is made of quality bakelite material which is moisture-resistant, fire-retardant, high temperature molded overall. It has following features: Economy benefits, specious appearance, etc. The meter frame adopt aluminum molding with excellent mechanical strength, stable structure and anti-impact. Voltage components and current components is used of double insulation structure, has good electrical characteristics. Standard configuration voltage circuit and current circuit connect in the case, may select connect outside. Standard configuration bottom bearing is used of single-precious stone bearing, oriented bearing is made of high wear resistance copper alloy bush and stainless steel needle. May select magnetic thrust bearing (Product Configuration code is SA) or double gem bearing (Product Configuration code is SE). All kinds of error adjustment mechanism adopt no step shifting mechanism. The meter starting and creeping needn’t to be adjust which is finished by anti-creeping hole of disc and convenient for adjusting by users. Standard configuration 5 digits display by drum wheel mechanical register, may select 6 digits display by drum wheel mechanical register (Product Configuration code is SK). Standard configuration without the device which can prevent retrograde, may select add the function of prevent retrograde. (Please specified when ordering). Single component measure single phase two wire active energy consumption. Complying with standard IEC 62053-11. Direct connect operation, there are two types wiring you may select. Standard configuration type 1B wiring, may select type 1A wiring (Product Configuration code is SJ). Standard configuration extension terminals cover, in order to protect to use safety, may select short terminals cover. (Product Configuration code is OI). |
|||||||||||||
| Technical parameters | |||||||||||||
|
|||||||||||||
| *If you need different reference voltage or current specification, please advisory our sales. | |||||||||||||

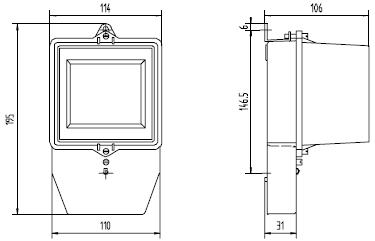

| Outer and mount dimension | |||||||||||||
 |
|||||||||||||
| Wiring diagram (Type 1B) | |||||||||||||
|
