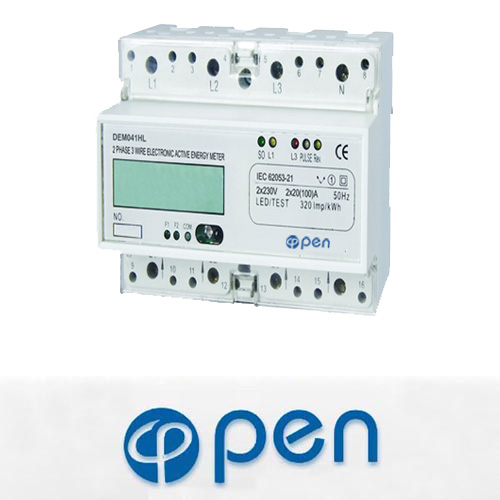

DEM041HL
|
| TWO PHASE THREE WIRE ELECTRONIC MULTI-RATE DIN-RAIL ACTIVE ENERGY METER |
| |
| |
| Application |
|
Model DEM041HL two phase three wire electronic multi-rate DIN rail active energy meter is a kind of two phase three wire two tariffs (tariff conversion is controlled by timer outside or similar equipment) active energy meter, the meter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from two phase three wire AC electricity net. This meter has seven digits LCD displays shows various consumption data and information. And there are far infrared and RS485 communication module in it. It is use for setting and reading the meter. Contact with all kind of AMR system conveniently. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc. This meter has already got the patent certificate from China State Intellectual Property Office at present. Patent certificate NO. ZL 2006 3 0107349.1, any other country patent certificate are in assessing.
|
| |
| |
| Functions and features |
● 35mm standard DIN rail installation, complying with standard DIN EN50022. Or front board installed (mounting holes center distance 63 mm), users can choose any one by themselves.
● Ten pole width (Modulus 12.5mm), complying with standard JB/T7121-1993.
● Have two tariffs, and port of set the tariff, input control voltage 0-90 Vac, set up tariff F1, input control voltage 150-400 Vac, set up tariff F2, the tariff conversion is controlled by timer outside or similar equipment.
● May select cycle display (default) or push the button itemized display, we can set the cycle display, it can display 6 data at most. Can select the data which displayed. The decimal median which displayed can choose set one or two.
● Use memory that is not loss easy, the data can be kept forever after blackout.
● There are a polarity port of pulse output passive closed and a nonpolarity port of pulse output passive distant, the output rate is 10 or 100 imp/kWh (can select), Complying with standard IEC 62053-31 and DIN 43864.
● There are far infrared and a port of RS485 communication data. It is use for setting and reading the meter, communication agreement complying with standard DL/T645-1997.
● Eight LED instructions respectively power supply state, signal of energy impulse, the direction of the flow of load current, the tariff state just now and the data communications state.
● Single direction two components measure two phase three wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.
● Standard configuration type S wiring (Inlet from bottom, outlet from top) for direct connect operation, we can also choose another type of wiring, and use CT (Product Configuration code is HN) and PT & CT (Product Configuration code is HP) for operation.
● Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety. (Product Configuration code is HM). |
| |
| |
| Technical parameters |
|
Model
|
Accuracy
|
Reference
voltage (V)
|
Current
specifications (A)
|
Starting
current (A)
|
Insulation
performance
|
|
DEM041HL
|
Class 1
|
2 x 127
2 x 230
|
5(30)
10(60)
20(100)
|
0.02
0.04
0.08
|
AC voltage 4kV for 1 minute,
1.2/50us waveform
impulse voltage 6kV
|
|
| *If you need different reference voltage or current specification, please advisory our sales. |
| |
| |

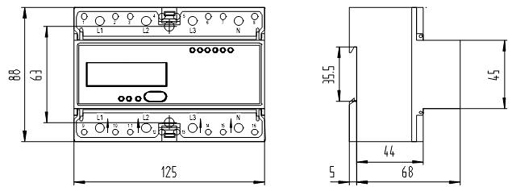

| Outer and mount dimension |
 |
| |
| |

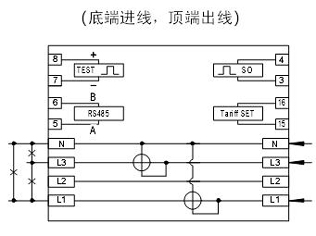

| Wiring diagram (Type S) |
 |
|
Terminal
|
Note
|
| L1, L3 |
L1, L3 phase line |
| L2 |
Don't use |
| N |
Neutral line (Inlet from bottom, outlet from top) |
| 15 and 16 |
Port of set the tariff, |
| 7 and 8 |
Port of pulse output passive closed |
| 5 and 6 |
Port of RS485 data communication |
| 3 and 4 |
Port of pulse output passive distant |
|
|
|
|
