DEM041FL

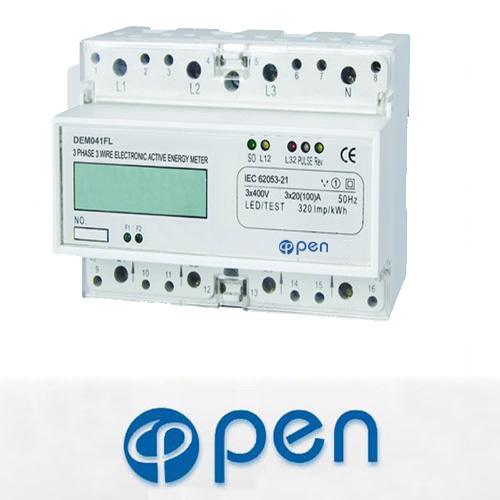

THREE PHASE THREE WIRE ELECTRONIC MULTI-RATE DIN-RAIL ACTIVE ENERGY METER





Application

Model DEM041FL three phase three wire electronic multi-rate DIN rail active energy meter is a kind of three phase three wire two tariffs (tariff conversion is controlled by timer outside or similar equipment) active energy meter, the meter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from three phase three wire AC electricity net. This meter has seven digits LCD displays shows various consumption data and information. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc. This meter has already got the patent certificate from China State Intellectual Property Office at present. Patent certificate NO. ZL 2006 3 0107349.1, any other country patent certificate are in assessing.





Functions and features

35mm standard DIN rail installation, complying with standard DIN EN50022. Or front board installed (mounting holes center distance 63 mm), users can choose any one by themselves.
Ten pole width (Modulus 12.5mm), complying with standard JB/T7121-1993.
Have two tariffs, and port of set the tariff, input control voltage 0-90 Vac, set up tariff F1, input control voltage 150-400 Vac, set up tariff F2, the tariff conversion is controlled by timer outside or similar equipment.
Standard configuration type of cycle display, cycle display is 5 seconds. It can display 6 data at most. Can select the data which displayed. (Please specified when ordering). The decimal median which displayed can choose set one or two. (Default two decimal, please specified when ordering).
Use memory that is not loss easy, the data can be kept forever after blackout.
There are a polarity port of pulse output passive closed and a nonpolarity port of pulse output passive distant, the output rate is 10 or 100 imp/kWh (can select), Complying with standard IEC 62053-31 and DIN 43864.
Seven LED instructions respectively power supply state, signal of energy impulse, the direction of the flow of load current, and the tariff state just now.
Single direction two components measure three phase three wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.
Standard configuration type S wiring (Inlet from bottom, outlet from top) for direct connect operation, we can also choose another type of wiring, and use CT (Product Configuration code is FN) and PT & CT (Product Configuration code is FP) for operation.
Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety. (Product Configuration code is FM).





Technical parameters

 Model

Accuracy

Reference
voltage (V)

Current
specifications (A)

Starting
current (A)

Insulation
performance

 DEM041FL

Class 1

3 x 220
3 x 400

5(30)
10(60)
20(100)

0.02
0.04
0.08

AC voltage 4kV for 1 minute,
1.2/50us waveform
impulse voltage 6kV

*If you need different reference voltage or current specification, please advisory our sales.

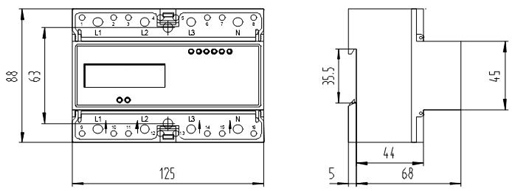

Outer and mount dimension

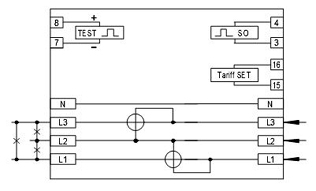

Wiring diagram (Type S)

Terminal

 Note

L1, L2, L3 L1, L2, L3 phase line
N Don't use (Inlet from bottom, outlet from top)
15 and 16 Port of set the tariff,
7 and 8 Port of pulse output passive closed
3 and 4 Port of pulse output passive distant
